Revolving centering taper
 MZK

APPLICATION
For counter-clamping workpieces with large boreholes,
such as pipes on lathes and grinding machines.

TYPE
With interchangeable centering taper attachments.
Optionally with draw-off nut or fixed shaft.

CUSTOMER BENEFITS
• High flexibility thanks to interchangeable centering
  taper attachments
• Quick change of interchangeable centering taper
  attachments

TECHNICAL FEATURES
- Body hardened and ground
- Centering taper insert hardened and ground


A06

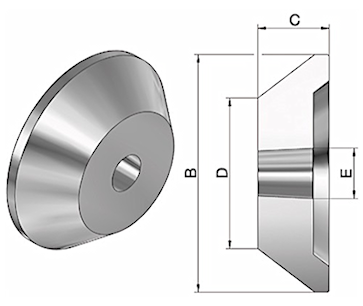

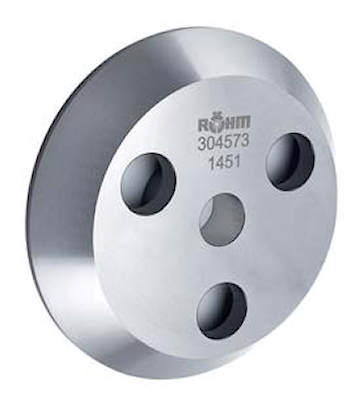

Suitable inserts AZ for centering tapers, standard version, taper 75°

 Item No.

  Size  for MT  B mm  C mm  D mm  E mm  Weight g
 304565 1)  1  4  60  68  5  32  900
 304566  2  4  100  45  45  32  1500
 304567  3  4  150  45  95  32  4100
 304568  4  4  200  45  145  32  6000
 304569  5  4  250  45  195  32  8500
 304570  1  5  100  43  45  40  1500
 304571  2  5  150  43  95  40  4400
 304572  3  5  200  43  145  40  6100
 304573  4  5  250  43  195  40  8100
 304574  5  5  300  43  245  40  11600
 304575  1  6  150  54  95  50  3000
 304576  2  6  200  54  145  50  8100
 304577  3  6  250  54  195  50  11100
 304578  4  6  300  54  245  50  14000
 304579  5  6  350  54  295  50  18800

1) Without fixing by screw and washer





We reserve the right to make technical changes.
