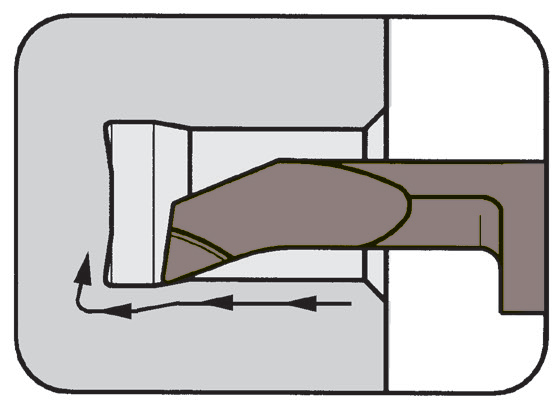

HARD BORING |
Insert | 105 |
||||
Bore Ø from |
4 mm |
||||
R = right hand version shown L = left hand version |
for Toolholder Type H105 HC105 B105 VDI B105C B105TS IR105 962 AIH 963 N |

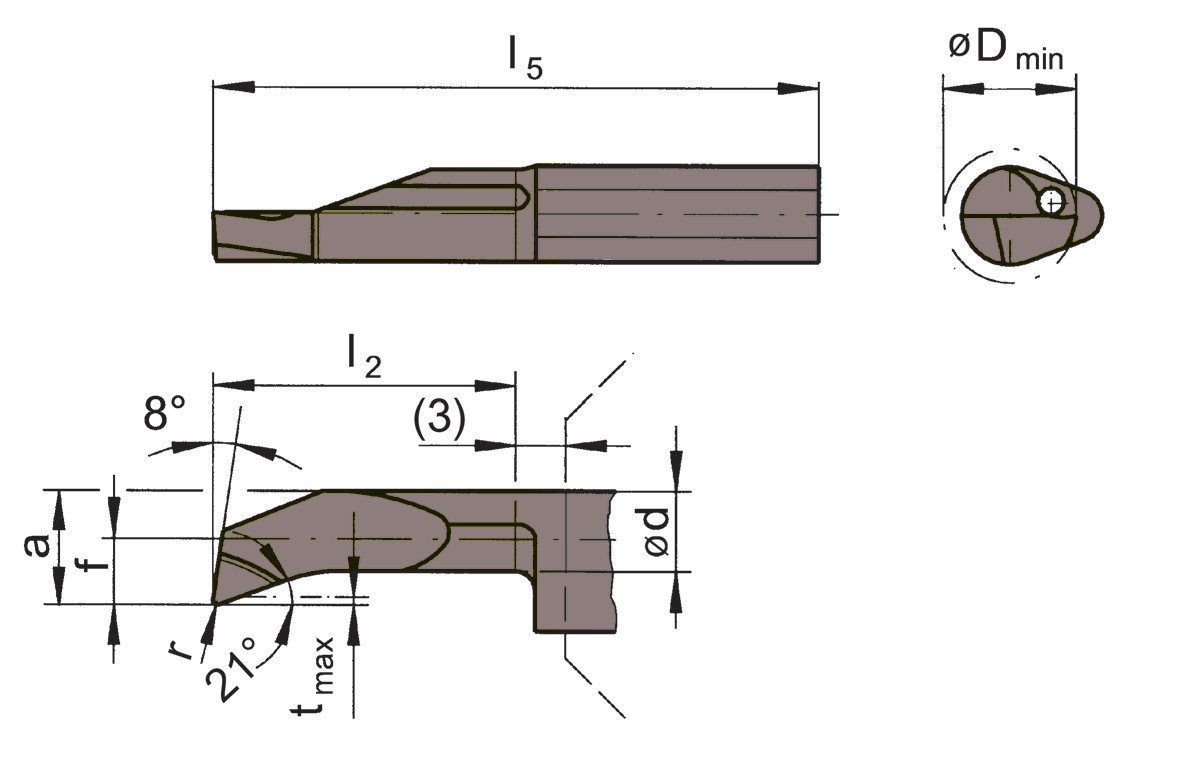

Part number | r | f | a | d | b | l2 | l5 | tmax | Dmin | ||
R/L105.1819.01.1.4F | 0.10 | 1.9 | 3.7 | 2.9 | 6.4 | 10 | 25 | 0.3 | 4 | ▲/▲ | |
R/L105.1819.01.2.4F | 0.10 | 1.9 | 3.7 | 2.9 | 6.4 | 15 | 30 | 0.3 | 4 | ▲/▲ | |
R/L105.1823.15.2.5F | 0.15 | 2.3 | 4.7 | 4.0 | 7.0 | 15 | 30 | 0.5 | 5 | ▲/▲ | |
R/L105.1823.15.3.5F | 0.15 | 2.3 | 4.7 | 4.0 | 7.0 | 20 | 35 | 0.5 | 5 | ▲/▲ | |
State R or L version | Further sizes upon request Dimensions in mm | P | |||||||||
▲ on stock △ 4 weeks upon request | M | ||||||||||
recommended | uncoated grades | K | |||||||||
alternative recommendation | coated grades | N | |||||||||
not suitable | brazed / Cermet | S | |||||||||
H | |||||||||||
Carbide grades |
|
