Turning Tools Boring bars starting from 5 mm working diameter |

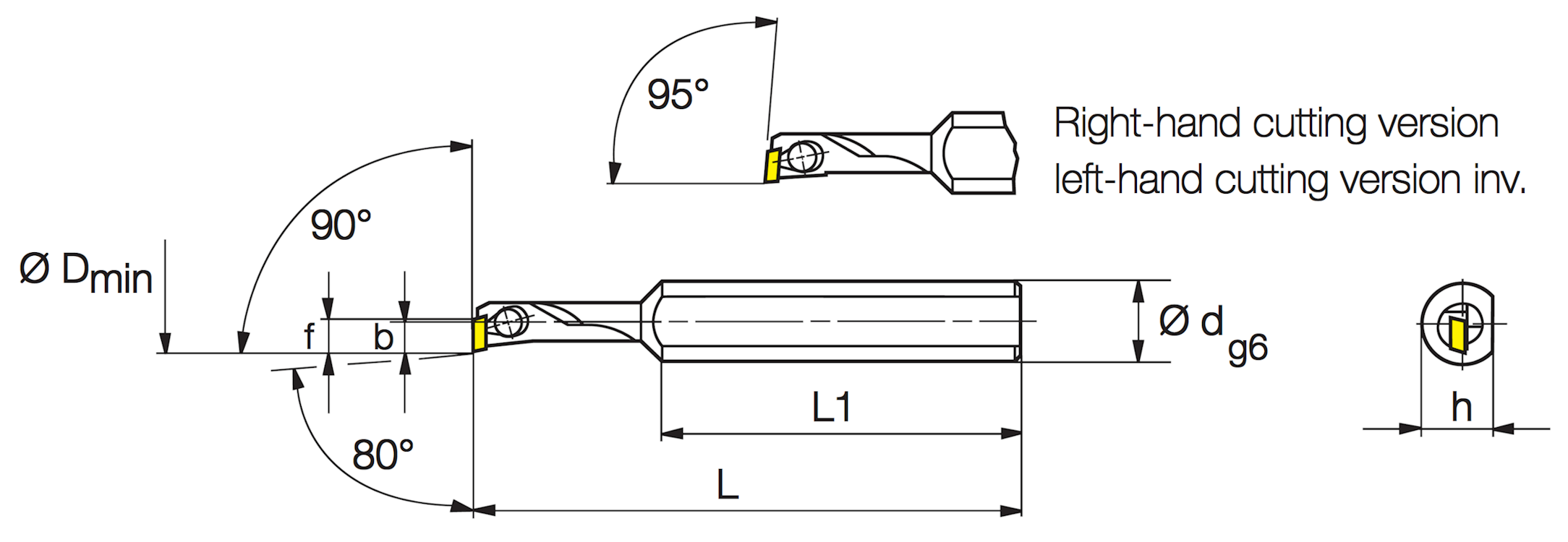

90° / 95° approach angle, 80° corner angle
Shank with clamping flange
| Part nr. 20030 |
||||||||||
| Code | Drawing nr. | Ø Dmin | Ø d | f | b | h | L1 | L | Inserts* | |
| 90° approach angle | ||||||||||
| 5,000 | H1733-0800 2890R | 5 | 8 | 2.80 | 3.25 | 7 | 36 | 55 | W1733-...L | |
| 6,000 | H1733-0800 3390R | 6 | 8 | 3.30 | 3.25 | 7 | 36 | 55 | ||
| 7,000 | H1733-0800 3890R | 7 | 8 | 3.80 | 3.25 | 7 | 36 | 65 | ||
| 8,000 | H1733-0800 4390R | 8 | 8 | 4.30 | 3.25 | 7 | 36 | 65 | ||
| 95° approach angle | ||||||||||
| 5,001 | H1733-0800 2895R | 5 | 8 | 2.80 | 3.25 | 7 | 36 | 55 | ||
| 6,001 | H1733-0800 3395R | 6 | 8 | 3.30 | 3.25 | 7 | 36 | 55 | ||
| 7,001 | H1733-0800 3895R | 7 | 8 | 3.80 | 3.25 | 7 | 36 | 65 | ||
| 8,001 | H1733-0800 4395R | 8 | 8 | 4.30 | 3.25 | 7 | 36 | 65 | ||
| H | ||||||||||
| Part nr. 20031 |
||||||||||
| Code | Drawing nr. | Ø Dmin | Ø d | f | b | h | L1 | L | Inserts* | |
| 90° approach angle | ||||||||||
| 5,000 | H1733-0800 2890L | 5 | 8 | 2.80 | 3.25 | 7 | 36 | 55 | W1733-...R | |
| 6,000 | H1733-0800 3390L | 6 | 8 | 3.30 | 3.25 | 7 | 36 | 55 | ||
| 7,000 | H1733-0800 3890L | 7 | 8 | 3.80 | 3.25 | 7 | 36 | 65 | ||
| 8,000 | H1733-0800 4390L | 8 | 8 | 4.30 | 3.25 | 7 | 36 | 65 | ||
| 95° approach angle | ||||||||||
| 5,001 | H1733-0800 2895L | 5 | 8 | 2.80 | 3.25 | 7 | 36 | 55 | ||
| 6,001 | H1733-0800 3395L | 6 | 8 | 3.30 | 3.25 | 7 | 36 | 55 | ||
| 7,001 | H1733-0800 3895L | 7 | 8 | 3.80 | 3.25 | 7 | 36 | 65 | ||
| 8,001 | H1733-0800 4395L | 8 | 8 | 4.30 | 3.25 | 7 | 36 | 65 | ||
| * Please note: Left-hand boring bars have to be fitted with right-hand inserts and right-hand boring bars with left-hand inserts! ex stock Ordering example: 1 piece H 1733-0800 3390 R = Ordering number: 20030 6,000 |
||||||||||
We reserve the right to make technical changes.
