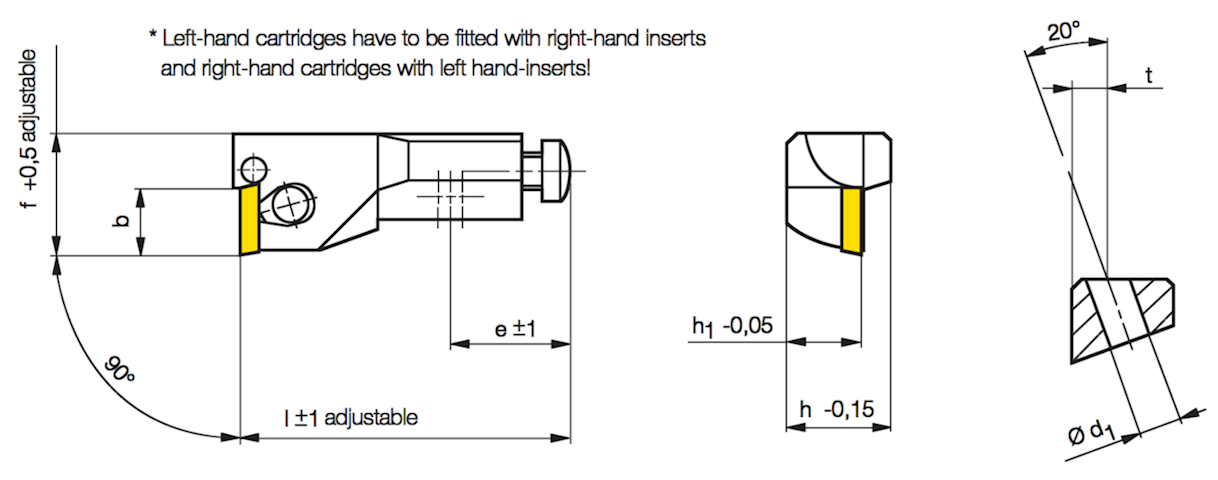

Cartridges with tapered screw adjustment, μm-accurate adjustable |
90° approach angle
| Part nr. 20040 |
|||||||||||
| Code | Drawing nr. | b | f | l | e | h1 | h | t | d1 | Inserts* | |
| 8,000 | H 1035-2088 0890 R CBFP R 06 CA-04 |
3.9 | 8 | 25 | 12 | 6 | 8.5 | 3.5 | 4 | W1035-...L | |
| 10,000 | H 2850-2588 1090 R CBFP R 08 CA-05 |
5 | 10 | 32 | 17 | 8 | 11 | 4.5 | 4.5 | W2850-...L | |
| 12,000 | H 3570-3088 1290 R CBFP R 08 CA-07 |
7 | 12 | 40 | 17 | 8 | 11 | 4.5 | 4.5 | W357-...L | |
| 14,000 | H 4090-3588 1490 R CBFP R 10 CA-09 |
9 | 14 | 50 | 20 | 10 | 14 | 5 | 7 | W409-...L | |
H 3570-3088 1290 R/L are not included in the ISO-Norm |
|||||||||||
| Part nr. 20041 |
|||||||||||
| Code | Drawing nr. | b | f | l | e | h1 | h | t | d1 | Inserts* | |
| 8,000 | H 1035-2088 0890 L CBFP L 06 CA-04 |
3.9 | 8 | 25 | 12 | 6 | 8.5 | 3.5 | 4 | W1035-...R | |
| 10,000 | H 2850-2588 1090 L CBFP L 08 CA-05 |
5 | 10 | 32 | 17 | 8 | 11 | 4.5 | 4.5 | W2850-...R | |
| 12,000 | H 3570-3088 1290 L CBFP L 08 CA-07 |
7 | 12 | 40 | 17 | 8 | 11 | 4.5 | 4.5 | W357-...R | |
| 14,000 | H 4090-3588 1490 L CBFP L 10 CA-09 |
9 | 14 | 50 | 20 | 10 | 14 | 5 | 7 | W409-...R | |
| ex stock on request | |||||||||||
 |
|
 |
