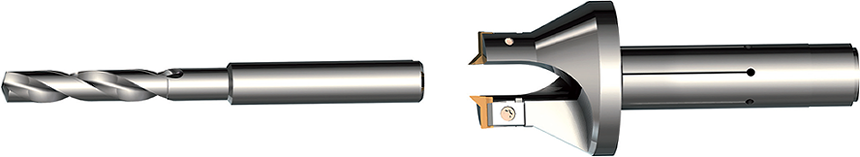

Drill / Chamfering Tools

Possible drill-adapter combinations



Drill
3xD
T
DIN 6537 K
Twisted		 Drill
5xD
T
DIN 6537 L
Twisted		 Drill
7xD
T

Twisted
Drawing nr. FB Insert SL SL Ø B from   -   to from   -   to from   -   to
H2006-1206 0000R 1.8 W2006-… …L 59.3 50.3 4.0 - 4.2 6.7 - 15.7 14.7 - 23.7 15.7 - 24.7
          4.3 - 4.7 6.7 - 15.7 14.7 - 23.7 25.7 - 34.7
4.8 - 5.3 6.7 - 15.7 22.7 - 31.7 30.7 - 39.7
5.4 - 6.0 6.7 - 15.7 22.7 - 31.7 37.7 - 46.7
H2006-1208 0000R 1.8 W2006-…. ….L 59.3 50.3 6.1 - 7.0 19.7 - 24.8 31.7 - 40.7 46.7 - 55.7
          7.1 - 8.0 19.7 - 28.7 31.7 - 40.7 56.7 - 65.7
H2006-2006 0000R 1.8 W2006-…. ….L 62.8 52.8 4.0 - 4.2 3.2 - 13.2 11.2 - 21.2 12.2 - 22.2
          4.3 - 4.7 3.2 - 13.2 11.2 - 21.2 22.2 - 32.2
4.8 - 5.3 3.2 - 13.2 19.2 - 29.2 27.2 - 37.2
5.4 - 6.0 3.2 - 13.2 19.2 - 29.2 34.2 - 44.2
H2006-2008 0000R 1.8 W2006-…. ….L 62.8 52.8 6.1 - 7.0 16.2 - 24.8 28.2 - 38.2 43.2 - 53.2
          7.1 - 8.0 16.2 - 26.2 28.2 - 38.2 53.2 - 63.2
H2006-2010 0000R 1.8 W2006-…. ….L 67.8 57.8 8.1 - 9.0 21.2 - 31.2 35.2 - 45.2 63.2 - 73.2
          9.1 - 10.0 21.2 - 31.2 35.2 - 45.2 71.2 - 81.2
H2006-2012 0000R 1.8 W2006-…. ….L 72.8 62.8 10.1 - 11.0 29.2 - 39.2 45.2 - 55.2 82.2 - 92.2
          11.1 - 12.0 29.2 - 39.2 45.2 - 55.2 90.2 - 99.5
H3006-2014 0000R 2.5 W3006-…. ….L 73.5 63.5 12.1 - 14.0 33.5 - 41.5 50.5 - 58.5 108.5 - 116.0
H3006-2016 0000R 2.5 W3006-…. ….L 73.5 63.5 14.1 - 16.0 41.5 - 43.9 59.5 - 61.9 130.5 - 132.6
H2006-3206 0000R 1.8 W2006-…. ….L 64.8 54.8 4.0 - 4.2 1.2 - 11.2 9.2 - 19.2 10.2 - 20.2
          4.3 - 4.7 1.2 - 11.2 9.2 - 19.2 20.2 - 30.2
4.8 - 5.3 1.2 - 11.2 17.2 - 27.2 25.2 - 35.2
5.4 - 6.0 1.2 - 11.2 17.2 - 27.2 32.2 - 42.2
H2006-3208 0000R 1.8 W2006-…. ….L 64.8 54.8 6.1 - 7.0 14.2 - 24.2 26.2 - 36.2 41.2 - 51.2
          7.1 - 8.0 14.2 - 24.2 26.2 - 36.2 51.2 - 61.2
H2006-3210 0000R 1.8 W2006-…. ….L 69.8 59.8 8.1 - 9.0 19.2 - 29.2 33.2 - 43.2 61.2 - 71.2
          9.1 - 10.0 19.2 - 29.2 33.2 - 43.2 69.2 - 79.2
H2006-3212 0000R 1.8 W2006-…. ….L 74.8 64.8 10.1 - 11.0 27.2 - 37.2 43.2 - 53.2 80.2 - 90.2
          11.1 - 12.0 27.2 - 37.2 43.2 - 53.2 88.2 - 98.2
H3006-3214 0000R 2.5 W3006-…. ….L 75.5 65.5 12.1 - 14.0 31.5 - 41.5 48.5 - 58.5 106.5 - 116.0
H3006-3216 0000R 2.5 W3006-…. ….L 80.5 70.5 14.1 - 16.0 34.5 - 43.9 52.5 - 62.5 123.5 - 132.6
H3006-3218 0000R 2.5 W3006-…. ….L 80.5 70.5 16.1 - 18.0 42.5 - 49.3 62.5 - 69.3 142.5 - 149.2
H3006-3220 0000R 2.5 W3006-…. ….L 80.5 70.5 18.1 - 20.0 50.5 - 52.6 72.5 - 74.6 163.5 - 165.8




We reserve the right to make technical changes.
