Drill / Chamfering Tools


Carbide inserts
uncoated / coated
 PCD inserts


Part nr.
20362		 Part nr.
20363		 Part nr.
20364		 Part nr.
20365

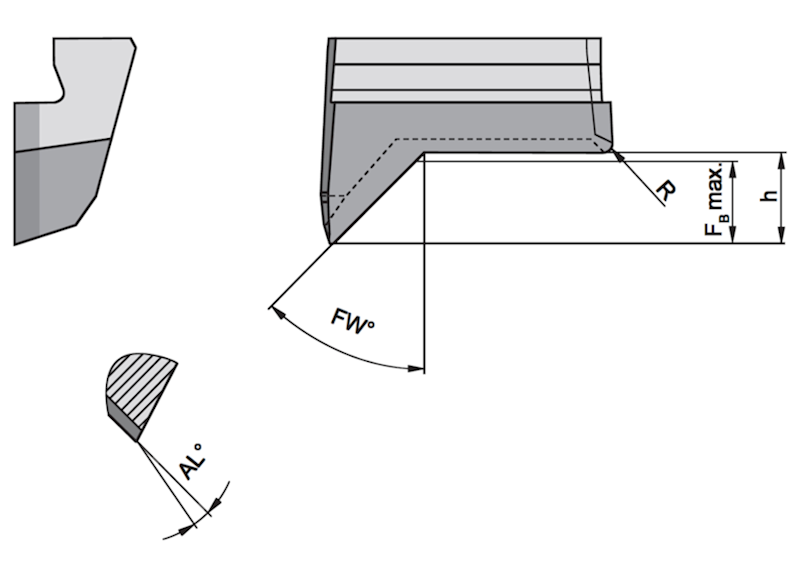

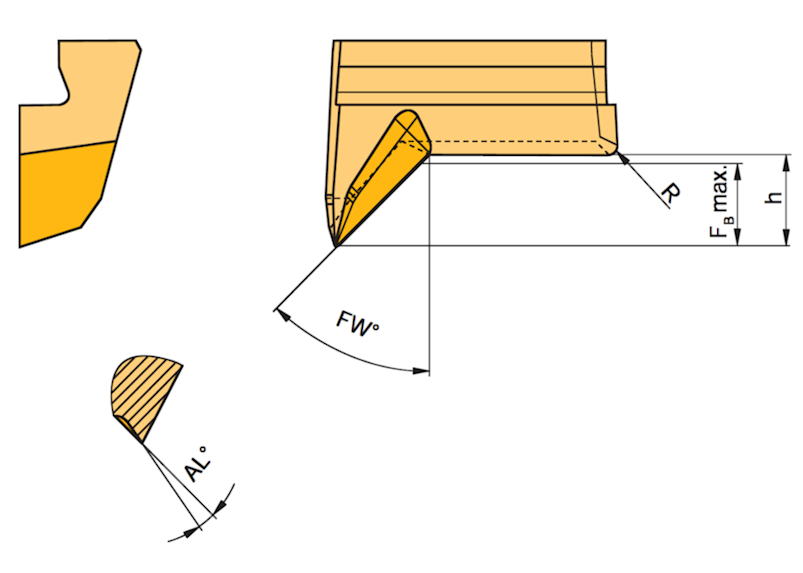

FB max FW° AL° R h Cutting grade
Code Drawing nr. max. Chamfer width Chamfer angle Rake angle Radius Height K10 G12 G16 PKD10

20,060 W2006-1830 1000L 1.8 30° 10° 0.2 2
20,060 W2006-1830 0000L 1.8 30° 0° 0.2 2

20,061 W2006-1845 1000L 1.8 45° 10° 0.2 2
20,061 W2006-1845 0000L 1.8 45° 0° 0.2 2

20,062 W2006-1860 1000L 1.8 60° 10° 0.2 2
20,062 W2006-1860 0000L 1.8 60° 0° 0.2 2

30,063 W3006-2530 1000L 2.5 30° 10° 0.2 2.7
30,063 W3006-2530 0000L 2.5 30° 0° 0.2 2.7

30,064 W3006-2545 1000L 2.5 45° 10° 0.2 2.7
30,064 W3006-2545 0000L 2.5 45° 0° 0.2 2.7

30,065 W3006-2560 1000L 2.5 60° 10° 0.2 2.7
30,065 W3006-2560 0000L 2.5 60° 0° 0.2 2.7
  ex stock




We reserve the right to make technical changes.
