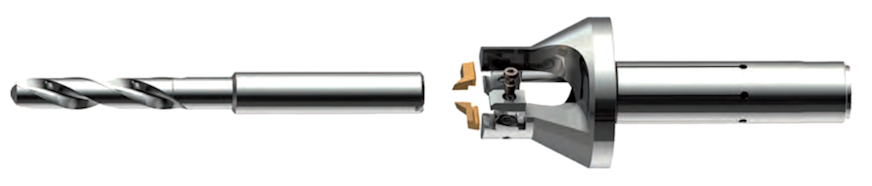

Drill / Chamfering Tools |
Assembly instructions
| Changing the insert Disassembly Loosen clamp set (1 to 2 turns) and remove the worn insert Clean pocket seat |
Assembly Put new insert into pocket seat Press insert into the pocket seat while slightly tightening the clamp set Push insert against the drill, therefore place 0.03 mm feeler gauge between insert and drill Hold insert in position and tight down clamp set with recommended torque |
| Clamp set | Clamping set for | Tx | Torque (Ncm) |
| E4890 | H 2006-... ... | 6 | 70 |
| E4991 | H 3006-... ... | 8 | 140 |
| Torque wrenches | |||
| Drawing number | Version | Tx | Ncm |
| E5000 | adjustable | 6 | 20-120 |
| E5001 | adjustable | 8 | 100-600 |
| E5400-6 | fixed | 6 | 70 |
| E5400-8 | fixed | 8 | 140 |
 |
|
 |
