  Indexable inserts precision ground
for boring bars starting from 6 mm working diameter

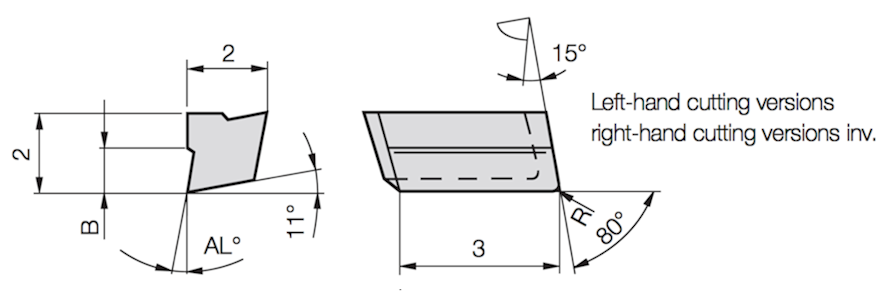

  Insert W 8003-…. …. L/R*
Carbide / carbide coated



Part nr.
20233		 Part nr.
20234		 Part nr.
20235		 Part nr.
20236		 Part nr.
20237
uncoated coated
Code Drawing nr. R B AL° P10 P40 K10 H25 H26
80,030 W8003-0014 1020L 0.05 1.4 10
80,031 W8003-0214 1020L 0.2 1.4 10
   

  Part nr.
20238		 Part nr.
20239		 Part nr.
20240		 Part nr.
20241		 Part nr.
20242
uncoated coated
Code Drawing nr. R B AL° P10 P40 K10 H25 H26
80,030 W8003-0014 1020R 0.05 1.4 10
80,031 W8003-0214 1020R 0.2 1.4 10
 *Please note:  Left-hand boring bars have to be fitted with right-hand inserts and right-hand boring bars with left-hand inserts!
  ex stock    on request




We reserve the right to make technical changes.
