W 8005 ... L/R

Indexable inserts precision ground
for boring bars starting from 6 mm working diameter

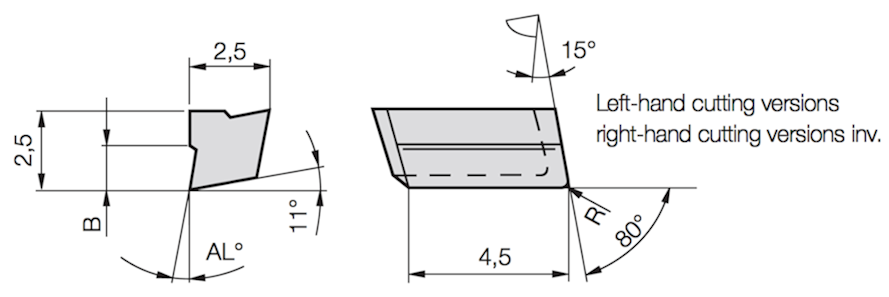

Insert W 8005-…. …. L/R*
Carbide / carbide coated

					Part nr. 20243	Part nr. 20244	Part nr. 20245	Part nr. 20246	Part nr. 20247
					uncoated			coated
Code	Drawing nr.	R	B	AL°	P10	P40	K10	H25	H26
80,050	W8005-0012 1020L	0.05	1.2	10
80,051	W8005-0212 1020L	0.2	1.2	10
80,052	W8005-0416 1020L	0.4	1.6	10

					Part nr. 20248	Part nr. 20249	Part nr. 20250	Part nr. 20251	Part nr. 20252
					uncoated			coated
Code	Drawing nr.	R	B	AL°	P10	P40	K10	H25	H26
80,050	W8005-0012 1020R	0.05	1.2	10
80,051	W8005-0212 1020R	0.2	1.2	10
80,052	W8005-0416 1020R	0.4	1.6	10
Please note: Left-hand boring bars have to be fitted with right-hand inserts and right-hand boring bars with left-hand inserts! ex stock* on request

We reserve the right to make technical changes.
