W 1733 W 8008 |
W 8003 W 8012 |
W 8005 W 5506 |
![]() ![]() |
![]() ![]() |
![]() |

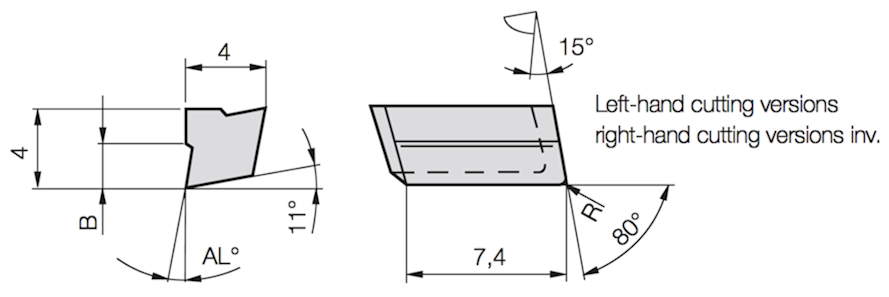

![]() for boring bars starting from 6 mm working diameter |
Insert W 8008-…. …. L/R* Carbide / carbide coated |

|
Part nr. 20253 |
Part nr. 20254 |
Part nr. 20255 |
Part nr. 20256 |
Part nr. 20257 |
||||
uncoated | coated | ||||||||
Code | Drawing nr. | R | B | AL° | P10 | P40 | K10 | H25 | H26 |
80,080 | W8008-0218 1000L | 0.2 | 1.8 | 10 | |||||
80,081 | W8008-0422 1000L | 0.4 | 2.2 | 10 | |||||
80,082 | W8008-0826 1000L | 0.8 | 2.6 | 10 | |||||
80,083 | W8008-0226 2420L | 0.2 | 2.6 | 24 | |||||
80,084 | W8008-0426 2420L | 0.4 | 2.6 | 24 | |||||
|
Part nr. 20258 |
Part nr. 20259 |
Part nr. 20260 |
Part nr. 20261 |
Part nr. 20262 |
||||
uncoated | coated | ||||||||
Code | Drawing nr. | R | B | AL° | P10 | P40 | K10 | H25 | H26 |
80,080 | W8008-0218 1000R | 0.2 | 1.8 | 10 | |||||
80,081 | W8008-0422 1000R | 0.4 | 2.2 | 10 | |||||
80,082 | W8008-0826 1000R | 0.8 | 2.6 | 10 | |||||
80,083 | W8008-0226 2420R | 0.2 | 2.6 | 24 | |||||
80,084 | W8008-0426 2420R | 0.4 | 2.6 | 24 | |||||
*Please note: Left-hand boring bars have to be fitted with right-hand inserts and right-hand boring bars with left-hand inserts! ex stock on request |
![]() |
|
![]() |
