| W 1733 W 8008 |
W 8003 W 8012 |
W 8005 W 5506 |
  |
  |
 |
 Indexable inserts precision groundfor boring bars starting from 6 mm working diameter |

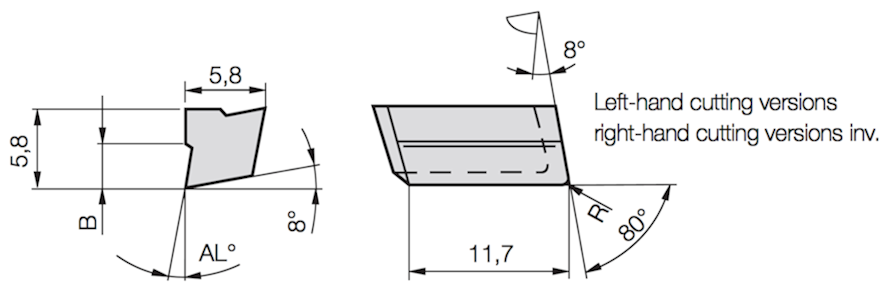

| Insert W 8012-…. …. L/R* Carbide / carbide coated |
| |
Part nr. 20263 |
Part nr. 20264 |
Part nr. 20265 |
Part nr. 20267 |
Part nr. 20268 |
||||
| uncoated | coated | ||||||||
| Code | Drawing nr. | R | B | AL° | P10 | P40 | K10 | H25 | H26 |
| 80,120 | W8012-0422 1000L | 0.4 | 2.2 | 10 | |||||
| 80,121 | W8012-0826 1000L | 0.8 | 2.6 | 10 | |||||
| 80,122 | W8012-0436 2420L | 0.4 | 3.6 | 24 | |||||
| 80,123 | W8012-0836 2420L | 0.8 | 3.6 | 24 | |||||
| |
Part nr. 20269 |
Part nr. 20270 |
Part nr. 20271 |
Part nr. 20273 |
Part nr. 20274 |
||||
| uncoated | coated | ||||||||
| Code | Drawing nr. | R | B | AL° | P10 | P40 | K10 | H25 | H26 |
| 80,120 | W8012-0422 1000R | 0.4 | 2.2 | 10 | |||||
| 80,121 | W8012-0826 1000R | 0.8 | 2.6 | 10 | |||||
| 80,122 | W8012-0436 2420R | 0.4 | 3.6 | 24 | |||||
| 80,123 | W8012-0836 2420R | 0.8 | 3.6 | 24 | |||||
| *Please note: Left-hand boring bars have to be fitted with right-hand inserts and right-hand boring bars with left-hand inserts! ex stock on request |
|||||||||
 |
|
 |
