HPC milling cutters
   for finish machining


Standard range with maximum number of cutting edges for cutting depths up to max. 2 mm

Part nr.
20004

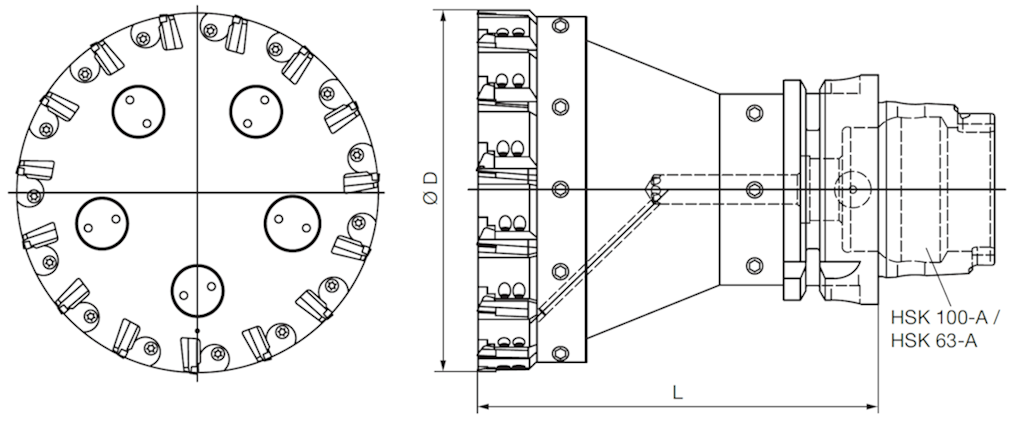

Code Drawing nr. Diameter/mm teeth L/mm max.rev./min Shank Weight(kg)
     for lower spindle power 
63,106 Q9933-6300 1063R 63 9 100 31,000 HSK 63-A 1.9
80,106 Q9933-8000 1163R 80 12 110 28,000 HSK 63-A 2.7
100,106 Q9933-1000 1163R 100 15 110 24,000 HSK 63-A 3.7
125,106 Q9933-1250 1263R 125 18 123 20,000 HSK 63-A 5.5
160,106 Q9933-1600 1263R 160 24 123 15,000 HSK 63-A 7.7

Part nr.
20004
Code Drawing nr. Diameter/mm teeth L/mm max.rev./min Shank Weight(kg)
     for lower spindle power 
63,108 Q9933-6300 1010R 63 9 100 31,000 HSK 100-A 3.2
80,108 Q9933-8000 1110R 80 12 110 28,000 HSK 100-A 4.2
100,108 Q9933-1000 1110R 100 15 110 24,000 HSK 100-A 5.7
125,108 Q9933-1250 1210R 125 18 123 20,000 HSK 100-A 7.7
160,108 Q9933-1600 1210R 160 24 123 15,000 HSK 100-A 10





We reserve the right to make technical changes.
