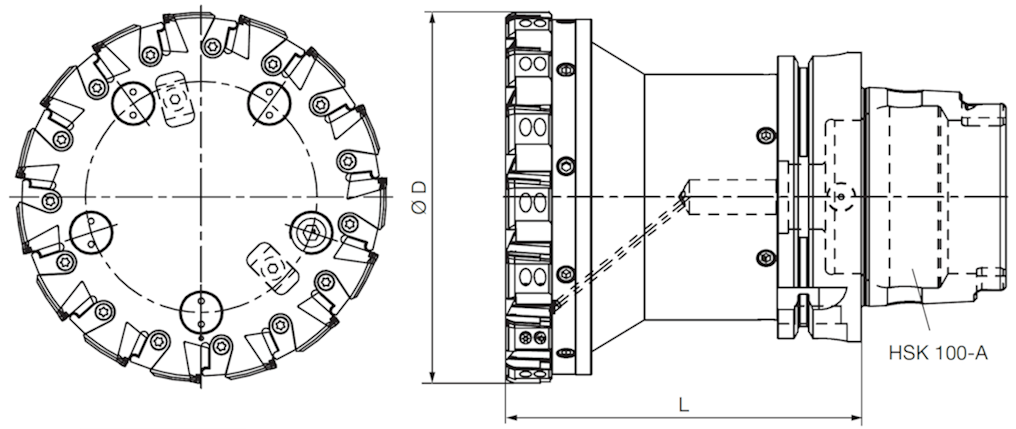

HPC milling cutters
   for rough machining




Part nr.
20005
Code Drawing nr. Ø D/mm Ø D2/mm teeth L/mm max.rev./min Shank

63,001 Q9934-6300 1010R 63 66.74 6 100 29,000 HSK 100-A
80,001 Q9934-8000 1110R 80 83.74 9 110 23,000 HSK 100-A
100,001 Q9934-1000 1110R 100 103.74 12 110 18,000 HSK 100-A
125,001 Q9934-1250 1210R 125 128.74 15 123 15,000 HSK 100-A
160,001 Q9934-1600 1210R 160 163.74 18 123 12,000 HSK 100-A





We reserve the right to make technical changes.
