HPC milling cutters for rough machining |
| PCD Inserts and spare parts for rough milling cutters |
| Part nr. 20375 |

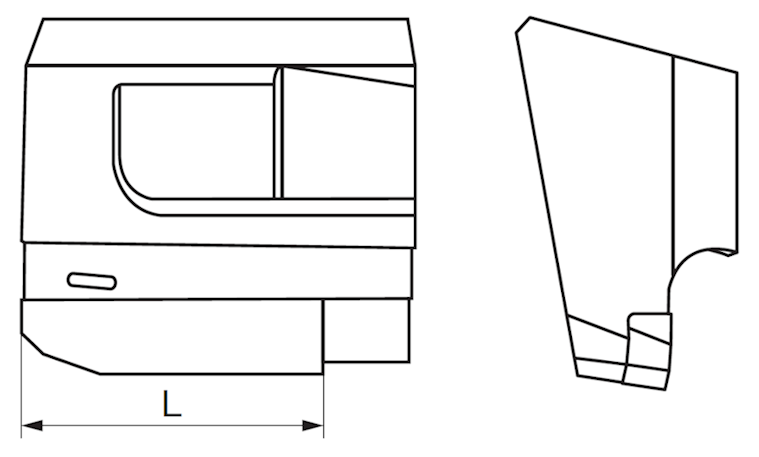

PCD inserts for HPC rough milling cutters | ||||
| Code | Drawing nr. | R | F | Cutting length L | Tool material |
| 99,340 | W9934-0330 0410R | -- | 20° / 45° | 12 | PCD 30 |
| 99,341 | W9934-0830 0470R | 0.8 | 20° | 12 | PCD 30 |
| Part nr. 20075 |

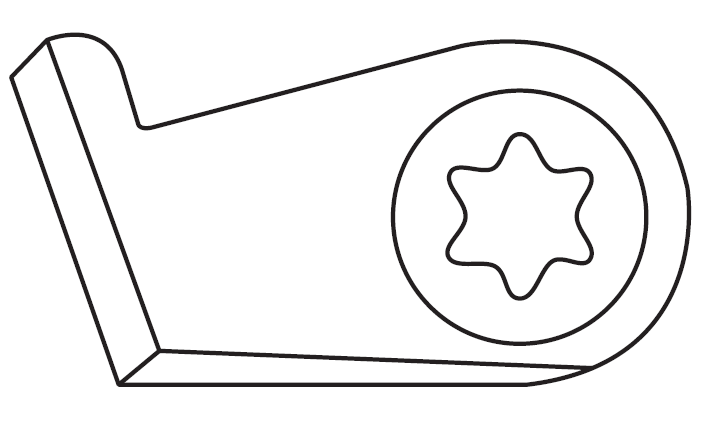

Chip guiding element (including clamp screw), CGE set | |
| Code | Drawing nr. | Milling cutter diameter/mm |
| 63,000 | E6300 9934 | 63 – 160 |
| Spare Parts | |||
| Clamping Screw | Adjustment Screw | ||
| Part nr. | Code | Part nr. | Code |
| 20080 | 3,000 | 20081 | 4,000 |
 |
|
 |
