ISO Taper-toolholders MAS BT 15

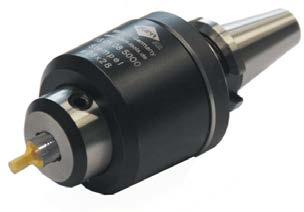

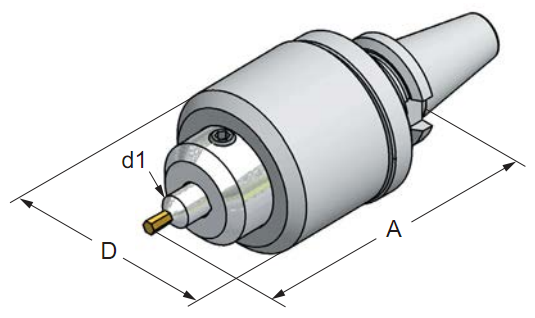

Broaching toolholder


Delivery without broaching cutter

       MAS BT 15
 Art.-Nr. Type d1 D A
 15.05.08.5000 BT15x08x78 8 40 78

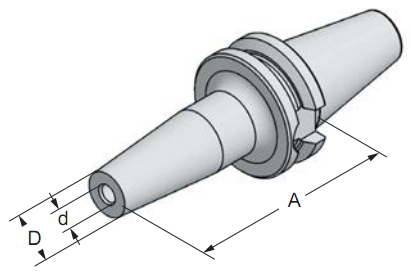

Shrinking chucks without coolant channels


Taper angle AT3, Concentricity from the taper to the
holding part < 0.005

Base-body balanced, G 2.5 - 30,000 U/min. or U < 1 gmm


       MAS BT 15
 Art.-Nr. Type A d D
 15.05.03.31  BT15x03Sx50-AD 50 3 10
 15.05.04.31  BT15x04Sx50-AD 50 4 10
 15.05.05.31  BT15x05Sx50-AD 50 5 14
       MAS BT 15
 Art.-Nr. Type A d D
 15.05.06.31  BT15x06Sx50-AD 50 6 14
 15.05.08.31  BT15x08Sx50-AD 50 8 14
 15.05.10.31  BT15x10Sx40-AD 40 10 16

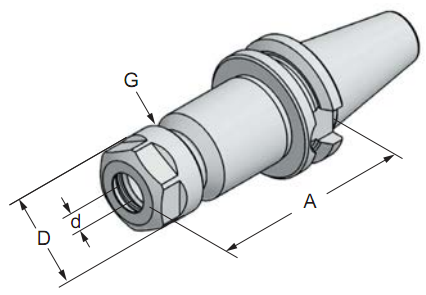

Collet chucks for collets DIN 6499 (ER/ESX)


Taper angle AT3, Concentricity from the taper to the
holding part < 0.005

Base-body balanced, G 2.5 - 30,000 U/min. or U < 1 gmm


       MAS BT 15
 Art.-Nr. Type A d D G
 15.05.07.2  BT15xER11x50-AD 50 1-7 19 M14x0.75

       MAS BT 15
 Art.-Nr. Type A d D G
 15.05.10.2  BT15xER16x40-AD 40 1-10 28 M22x1.5
 15.05.10.22  BT15xER16x75-AD 75 1-10 28 M22x1.5





We reserve the right to make technical changes.
