| HAM 30-1160 (HAM 313) solid carbide spiral drill |
|
Engineering data
• 4-facet ground • web thinning DIN 1412 form A • AMS geometry • 30° RH helix |
 |
| Material |               |
| 30-1160 | |
| very suitable limited suitable | |
        |

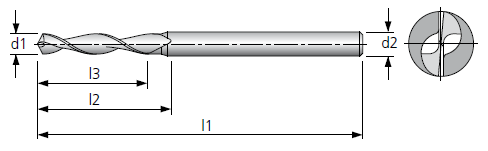

| Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
Ø d1 (h7) mm |
l3 mm |
l2 mm |
l1 mm |
Ø d2 (h6) mm |
|
| 0.5 | 5 | 6 | 38 | 3 | 1.6 | 12 | 15 | 38 | 3 | |
| 0.55 | 5 | 6 | 38 | 3 | 1.65 | 12 | 15 | 38 | 3 | |
| 0.6 | 5 | 6 | 38 | 3 | 1.7 | 12 | 15 | 38 | 3 | |
| 0.65 | 6 | 7 | 38 | 3 | 1.8 | 12 | 15 | 38 | 3 | |
| 0.7 | 6 | 7 | 38 | 3 | 1.85 | 12 | 15 | 38 | 3 | |
| 0.75 | 8 | 10 | 38 | 3 | 1.9 | 12 | 15 | 38 | 3 | |
| 0.8 | 8 | 10 | 38 | 3 | 2 | 14 | 16.5 | 38 | 3 | |
| 0.85 | 8 | 10 | 38 | 3 | 2.05 | 14 | 16.5 | 38 | 3 | |
| 0.9 | 10 | 12 | 38 | 3 | 2.1 | 14 | 16.5 | 38 | 3 | |
| 0.95 | 10 | 12 | 38 | 3 | 2.2 | 14 | 16.5 | 38 | 3 | |
| 1 | 10 | 12 | 38 | 3 | 2.3 | 14 | 16.5 | 38 | 3 | |
| 1.05 | 10 | 12 | 38 | 3 | 2.4 | 14 | 16.5 | 38 | 3 | |
| 1.1 | 10 | 12 | 38 | 3 | 2.5 | 14 | 16.5 | 38 | 3 | |
| 1.15 | 10 | 12 | 38 | 3 | 2.6 | 14 | 16.5 | 38 | 3 | |
| 1.2 | 12 | 15 | 38 | 3 | 2.7 | 14 | 16.5 | 38 | 3 | |
| 1.25 | 12 | 15 | 38 | 3 | 2.8 | 14 | 16.5 | 38 | 3 | |
| 1.3 | 12 | 15 | 38 | 3 | 2.9 | 14 | 16.5 | 38 | 3 | |
| 1.4 | 12 | 15 | 38 | 3 | 3 | 14 | 16.5 | 38 | 3 | |
| 1.45 | 12 | 15 | 38 | 3 | ||||||
| 1.5 | 12 | 15 | 38 | 3 |
 |
|
 |
