Collet chuck MAS BT30 radially adjustable


Collet chuck for collets DIN 6499 (ER/ESX) + ETS16


Concentricity from the taper to the holding part < 0.005


Function:

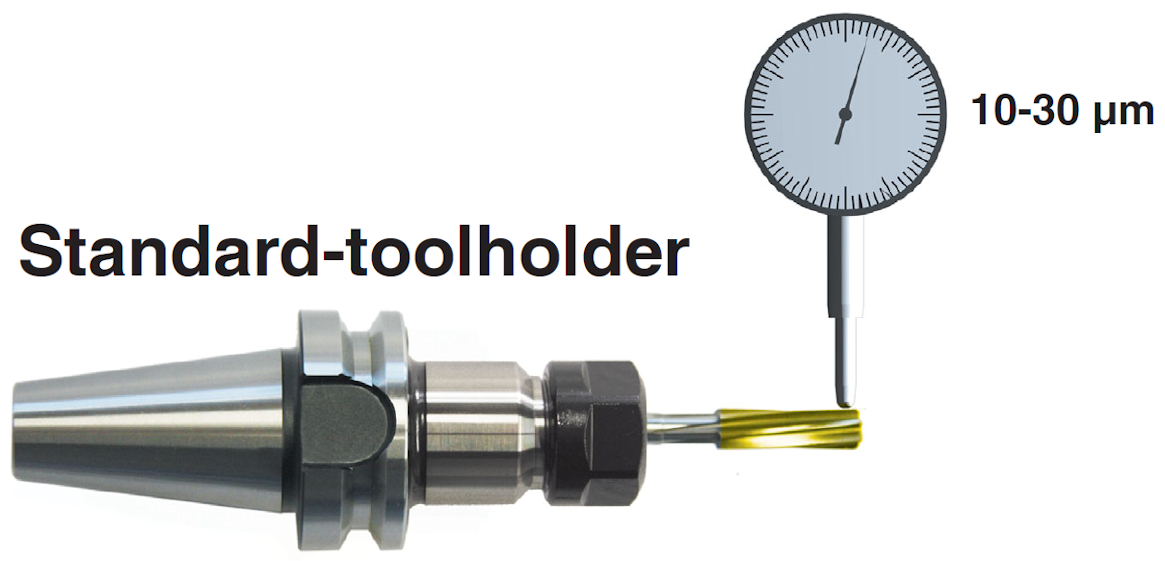

The run-out error of the tool must be determined and the clamping ring with screw must be brought in position. Screw must be tightened until run-out error is 0 - after that the remaining screws can be tightened.


DIN 6499 - ER/ESX11 (ø1-7)


Delivery without collet


       MAS BT 30

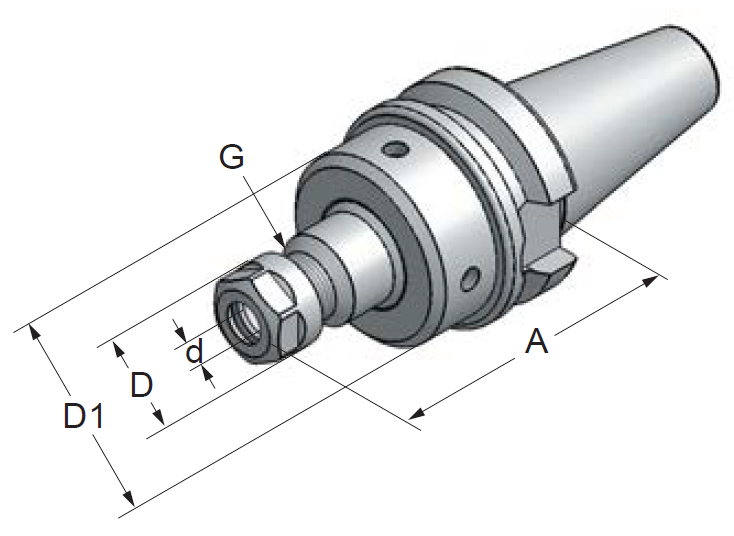

 Art.-Nr. Type A d D D1 G

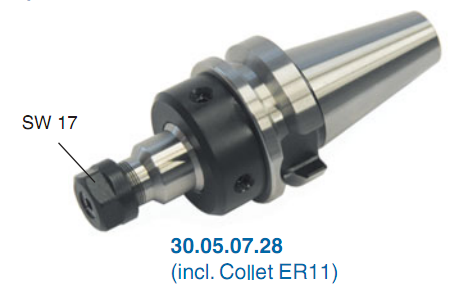

 30.05.07.28 BT30xER11x70-AD incl. Collet ER11 70 1-7 19 40 M14x0.75



DIN 6499 - ER/ESX16 (ø1-10)


Delivery without collet


       MAS BT 30

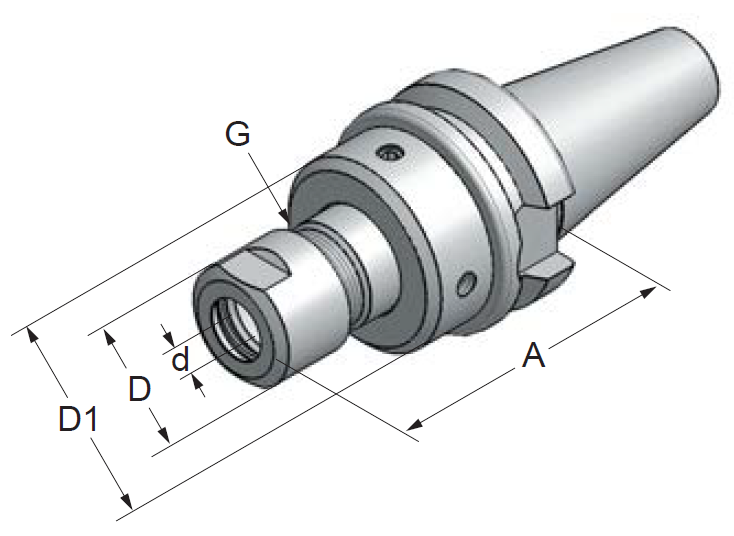

 Art.-Nr. Type A d D D1 G

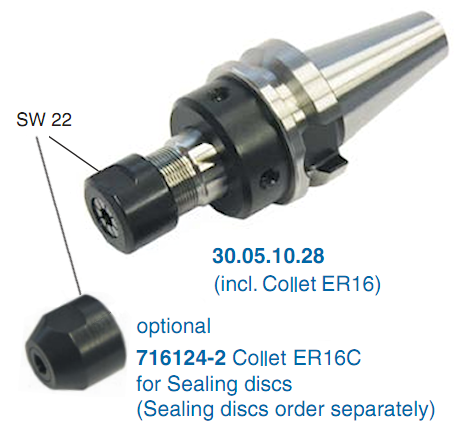

 30.05.10.28   BT30xER16x70-AD incl. Collet ER16 70 1-10 25 40 M20x1
 716124-2   Collet ER16C for Sealing discs 1-10 25 M20x1



ETS16 (ø1-10)


Delivery without collet


       MAS BT 30
 Art.-Nr. Type A d D D1 G

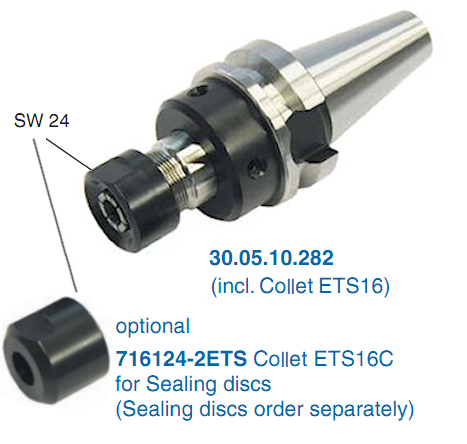

 30.05.10.282   BT30xETS16mx70-AD incl. Collet ETS16 70 1-10 27 40 M20x1
 716124-2ETS   Collet ETS16C for Sealing discs 1-10 27 M20x1



Wrench

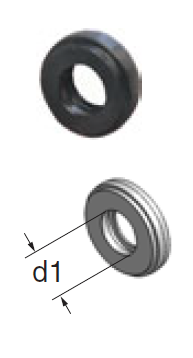

Sealing Discs for
ER16C / ETS16C


 Art.-Nr. Type

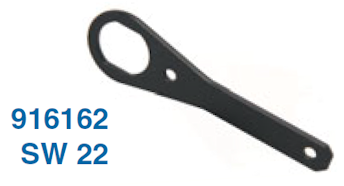

 916162   Wrench SW 22 for ER16 + ER 16C
 916163   Wrench SW 24 for ETS16 + ETS 16C

 Art.-Nr. d1
 316030 ø3 - 2
 316040 ø4 - 3
 316050 ø5 - 4
 316060 ø6 - 5
 316070 ø7 - 6
 316080 ø8 - 7
 316090 ø9 - 8
 316100 ø10-9





We reserve the right to make technical changes.
