| HAM 40-7640 PCD-HPC arbor milling cutter |
|
Engineering data
• highest possible productivity • optimal surface quality • high tool life • corner cutting edges 90º Delivery Scale: – with tightening screw (with IC) – without cutter adaptor |
 |
| Material |        |
| 40-7640 | very suitable limited suitable |
       |

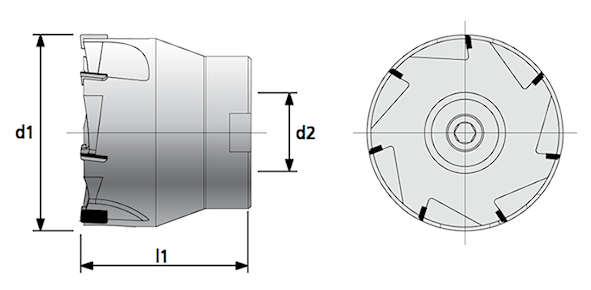

| Ø d1 mm |
l1 mm |
Z | n max. min-1 |
weight ca. kg |
Ø d2 mm |
Ø d1 mm |
l1 mm |
Z | n max. min-1 |
weight ca. kg |
Ø d2 mm |
|
| 40 | 50 | 5 | 20.000 | 0.6 | 22 | 63 | 55 | 7 | 20.000 | 0.8 | 27 | |
| 50 | 50 | 5 | 20.000 | 0.7 | 22 |
 |
|
 |
