 HAM 40-6250 (HAM 625)  HSK-Cutter adaptor

   Engineering data
   • high concentricity
   • narrowed tolerance

   * Additional 4 fastening screw threads acc.
     DIN 2079.

   Special measurements on request.

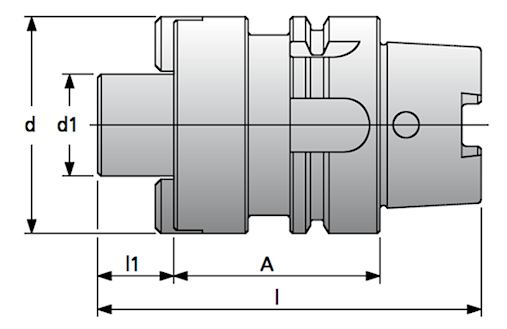

Ø d1

mm		 HSK
DIN
69893-A		 Ø d1

mm		 l

mm		 l1

mm		 weight

ca. kg		 A

mm		   Ø d1

mm		 HSK
DIN
69893-A		 Ø d1

mm		 l

mm		 l1

mm		 weight

ca. kg		 A

mm
22 63 42 103 19 1.0 50   32     63   60 116 24 1.4 60
22 63 42 113 19 1.1 60   40     63   70 119 27 1.6 60
27 63 50 103 21 1.1 50   40*   63   90 119 28 2.0 60
27 63 50 113 21 1.2 60   60* 100 130 160 40 5.1 70





We reserve the right to make technical changes.
