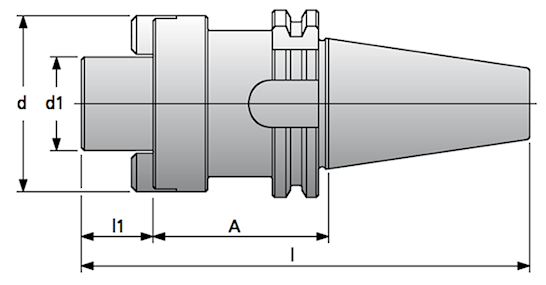

| HAM 40-6200 (HAM 620) SK-Cutter adaptor |
|
Engineering data
• high concentricity • narrowed tolerance * Additional 4 fastening screw threads acc. DIN 2079. Special measurements on request. |
 |
| Ø d1 mm |
SK DIN 69871-AD |
Ø d1 mm |
l mm |
l1 mm |
weight ca. kg |
A mm |
Ø d1 mm |
SK DIN 69871-AD |
Ø d1 mm |
l mm |
l1 mm |
weight ca. kg |
A mm |
|
| 22 | 40 | 42 | 129.4 | 19 | 1.1 | 40 | 32 | 40 | 60 | 152.4 | 24 | 1.7 | 60 | |
| 22 | 40 | 42 | 149.4 | 19 | 1.3 | 60 | 40 | 40 | 70 | 145.4 | 27 | 1.9 | 50 | |
| 27 | 40 | 50 | 129.4 | 21 | 1.3 | 40 | 40 | 40 | 70 | 155.4 | 27 | 2.0 | 60 | |
| 27 | 40 | 50 | 149.4 | 21 | 1.5 | 60 | 40* | 40 | 90 | 156.4 | 28 | 2.5 | 60 | |
| 32 | 40 | 60 | 142.4 | 24 | 1.6 | 50 | 60* | 50 | 130 | 211.0 | 40 | 6.1 | 70 |
 |
|
 |
