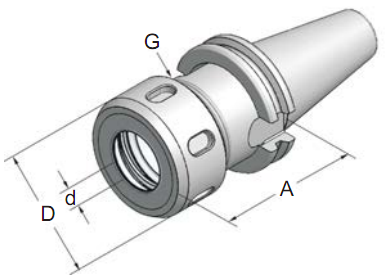

Collet chucks DIN 6391 for collets DIN 6388 / ISO 10897
Taper angle AT3, Concentricity from the taper to the holding part < 0.005
Base-body balanced, SK30/BT30 G 2.5 - 25,000 r.p.m.
SK40/BT40 G 2.5 - 20,000 r.p.m.
SK50/BT50 G 2.5 - 15,000 r.p.m.
Collets on inquiry
   |
| DIN 69871 |
| Art.-Nr. |
Type |
A |
d |
D |
G |
| |
| |
| 40.01.16.10 |
SK40xOZ16x 70-AD+B |
70 |
1-16 |
43 |
M33x1.5 |
| 40.01.16.12 |
SK40xOZ16x100-AD+B |
100 |
1-16 |
43 |
M33x1.5 |
| |
| 40.01.25.10 |
SK40xOZ25x 70-AD+B |
70 |
2-25 |
60 |
M48x2.0 |
| 40.01.25.12 |
SK40xOZ25x100-AD+B |
100 |
2-25 |
60 |
M48x2.0 |
| |
| 40.01.32.10 |
SK40xOZ32x 90-AD+B |
90 |
4-32 |
72 |
M60x2.5 |
| |
| 50.01.25.10 |
SK50xOZ25x100-AD+B |
100 |
2-25 |
60 |
M48x2.0 |
| |
| 50.01.32.10 |
SK50xOZ32x100-AD+B |
100 |
4-32 |
72 |
M60x2.5 |
|
| MAS BT |
| Art.-Nr. |
Type |
A |
d |
D |
G |
| 30.05.16.1 |
BT30xOZ16x 70-AD |
70 |
1-16 |
43 |
M33x1.5 |
| |
| 40.05.16.1 |
BT40xOZ16x 70-AD |
70 |
1-16 |
43 |
M33x1.5 |
| |
| |
| 40.05.25.1 |
BT40xOZ25x 70-AD |
70 |
2-25 |
60 |
M48x2.0 |
| |
| |
| 40.05.32.1 |
BT40xOZ32x 80-AD |
80 |
4-32 |
72 |
M60x2.5 |
| |
| 50.05.25.1 |
BT50xOZ25x100-AD |
100 |
2-25 |
60 |
M48x2.0 |
| |
| 50.05.32.1 |
BT50xOZ32x100-AD |
100 |
4-32 |
72 |
M60x2.5 |
|
