Quick-action drill chucks EXTRA
 EXTRA80-RV


Clamp capacity: 1 - 13 mm
Mount: 1/2"-20
    3/8“-24
    SDS plus
    1/4“ Hex






APPLICATION
For corded and cordless drills with and without spindle stop up
to a maximum torque of 100 Nm and up to 1500 watt.

TYPE
Impact-resistant quick-action drill chuck with radial locking and
plastic or metal sleeve.
Optional with retaining ring for machines without spindle stop.

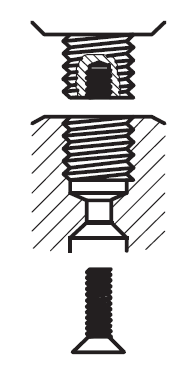

With through-hole for use of a locking screw.

CUSTOMER BENEFITS
• Easy clamping and locking with one manual operation for
  maximum user-friendliness.
• Radial locking device to prevent release of the drill bit during
  clockwise and counterclockwise rotation
• Impact-resistant for universal use

TECHNICAL FEATURES
- With carbide inserts in the clamping jaws
- Equipped with collision protector by freely rotating
   protection disc
- For machines without spindle stop (optional)
- Radial locking


A01

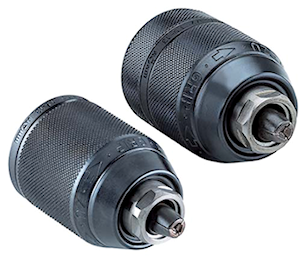

EXTRA80-RV with radial locking, metal design

Item No.  Size  Clamping
 capacity
 mm		  Mount   Retaining
 Ring		  Design  Concentricity
 deviation
 max. mm		  External  Ø
 mm		  Length
 opened
 mm		  Length
 closed
 mm		  Max.
 mach.
 capacity
 watt		  Through-
 hole
 1328321  10  1-10  3/8“-24    metal  0.35  42.7  55  60.9  550   ●
 1328318  10  1-10  1/2“-20    metal  0.35  42.7  55  60.9  550   ●
 1328317  10  1-10  1/2“-20   ●  metal  0.35  42.7  55  60.9  550   ●
 1328314  13  1.5-13  3/8“-24   ●  metal  0.4  42.7  64.5  72.4  1500   ●
 1328311  13  1.5-13  1/2“-20    metal  0.4  42.7  64.5  72.4  1500   ●
 1328310  13  1.5-13  1/2“-20   ●  metal  0.4  42.7  64.5  72.4  1500   ●
Note: locking screw is not included in scope of delivery

A01
EXTRA80-RV with radial locking, plastic design

Item No.  Size  Clamping
 capacity
 mm		  Mount   Retaining
 Ring		  Design  Concentricity
 deviation
 max. mm		  External  Ø
 mm		  Length
 opened
 mm		  Length
 closed
 mm		  Max.
 mach.
 capacity
 watt		  Through-
 hole
 1328323  10  1-10  3/8“-24    plastic  0.35  42.7  55  60.9  550   ●
 1328322  10  1-10  3/8“-24   ●  plastic  0.35  42.7  55  60.9  550   ●
 1328320  10  1-10  1/2“-20    plastic  0.35  42.7  55  60.9  550   ●
 1328319  10  1-10  1/2“-20   ●  plastic  0.35  42.7  55  60.9  550   ●
 1328316  13  1.5-13  3/8“-24    plastic  0.4  42.7  64.5  72.4  1000   ●
 1328315  13  1.5-13  3/8“-24   ●  plastic  0.4  42.7  64.5  72.4  1000   ●
 1328313  13  1.5-13  1/2“-20    plastic  0.4  42.7  64.5  72.4  1000
 1328312  13  1.5-13  1/2“-20   ●  plastic  0.4  42.7  64.5  72.4  1000   ●
Note: locking screw is not included in scope of delivery

A01
EXTRA80-RV with SDS plus mounting shank and radial locking,
metal design

Item No.  Size  Clamping
 capacity
 mm		  Mount   Retaining
 Ring		  Design  External  Ø
 mm		  Length
 opened
 without
 SDS-
 shank mm		  Length
 closed
 without
 SDS-
 shank mm
 1288566  13  1.5-13  1/2“-20 /
 SDS plus		   ●  metal  42.7  64.5  72.4
Use exclusively with deactivated hammer function

A01
EXTRA80-RV for impact screwdriver mounting 1/4“ Hex,
plastic design, specially suited for impact screwdrivers (eccentricity)

Item No.  Size  Clamping
 capacity
 mm		  Mount   Retaining
 Ring		  Design  External  Ø
 mm		  Length
 opened
 without
 SDS-
 shank mm		  Length
 closed
 without
 SDS-
 shank mm
 1178269  10  1-10  1/4“-Hex   ●  plastic  42.7  55  63.1






We reserve the right to make technical changes.
