ISO Taper-toolholders


Universal arbors DIN 6358


Taper angle AT3, Concentricity from the taper to the holding part < 0.005
       DIN 69871

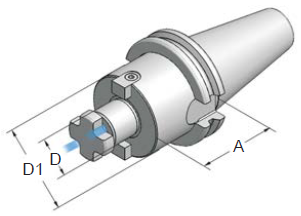

 Art.-Nr. Type A D D1
 30.01.16.4 SK30x16x  50-AD   50 16 32
 30.01.22.4 SK30x22x  50-AD   50 22 40
 30.01.27.4 SK30x27x  52-AD   52 27 48

 40.01.16.4 SK40x16x  55-AD   55 16 32
 40.01.22.4 SK40x22x  55-AD   55 22 40
 40.01.27.4 SK40x27x  55-AD   55 27 48
 40.01.32.4 SK40x32x  60-AD   60 32 58
 40.01.40.4 SK40x40x  60-AD   60 40 70

 40.01.16.42 SK40x16x100-AD 100 16 32
 40.01.22.42 SK40x22x100-AD 100 22 40
 40.01.27.42 SK40x27x100-AD 100 27 48
 40.01.32.42 SK40x32x100-AD 100 32 58

 50.01.16.4 SK50x16x  55-AD   55 16 32
 50.01.22.4 SK50x22x  55-AD   55 22 40
 50.01.27.4 SK50x27x  55-AD   55 27 48
 50.01.32.4 SK50x32x  55-AD   55 32 58
 50.01.40.4 SK50x40x  55-AD   55 40 70
 50.01.50.4 SK50x50x  70-AD   70 50 90

 50.01.16.42 SK50x16x100-AD 100 16 32
 50.01.22.42 SK50x22x100-AD 100 22 40
 50.01.27.42 SK50x27x100-AD 100 27 48
 50.01.32.42 SK50x32x100-AD 100 32 58
 50.01.40.42 SK50x40x100-AD 100 40 70
       MAS BT
 Art.-Nr. Type A D D1
 30.05.16.4 BT30x16x  50-AD   50 16 32
 30.05.22.4 BT30x22x  50-AD   50 22 40
 30.05.27.4 BT30x27x  50-AD   50 27 48

 40.05.16.4 BT40x16x  55-AD   55 16 32
 40.05.22.4 BT40x22x  55-AD   55 22 40
 40.05.27.4 BT40x27x  55-AD   55 27 48
 40.05.32.4 BT40x32x  60-AD   60 32 58
 40.05.40.4 BT40x40x  60-AD   60 40 70

 40.05.16.42 BT40x16x100-AD 100 16 32
 40.05.22.42 BT40x22x100-AD 100 22 40
 40.05.27.42 BT40x27x100-AD 100 27 48
 40.05.32.42 BT40x32x100-AD 100 32 58

 50.05.16.4 BT50x16x  70-AD   70 16 32
 50.05.22.4 BT50x22x  70-AD   70 22 40
 50.05.27.4 BT50x27x  70-AD   70 27 48
 50.05.32.4 BT50x32x  70-AD   70 32 58
 50.05.40.4 BT50x40x  70-AD   70 40 70
 50.05.50.4 BT50x50x  90-AD   90 50 90

 50.05.16.42 BT50x16x100-AD 100 16 32
 50.05.22.42 BT50x22x100-AD 100 22 40
 50.05.27.42 BT50x27x100-AD 100 27 48
 50.05.32.42 BT50x32x100-AD 100 32 58
 50.05.40.42 BT50x40x100-AD 100 40 70
