A05
Precision version

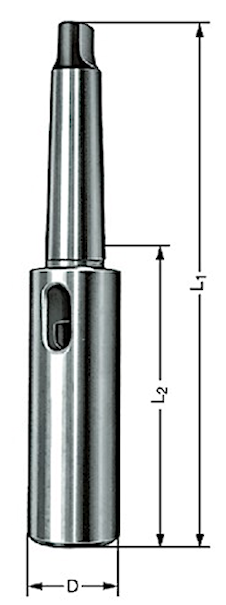

DIN 2187 completely hardened, ground internal and external
| Item No. |
External
taper MT |
Internal
taper MT |
D
mm |
L1
mm |
L2
mm |
Weight
approx. g |
| 029122 |
1 |
1 |
20 |
145 |
83 |
190 |
| 029123 |
1 |
2 |
30 |
160 |
98 |
340 |
| 029124 |
2 |
1 |
20 |
160 |
85 |
250 |
| 029125 |
2 |
2 |
30 |
175 |
100 |
400 |
| 029126 |
2 |
3 |
36 |
196 |
121 |
840 |
| 029127 |
3 |
1 |
20 |
175 |
81 |
400 |
| 029128 |
3 |
2 |
30 |
194 |
100 |
550 |
| 029129 |
3 |
3 |
36 |
215 |
121 |
1000 |
| 029130 |
3 |
4 |
48 |
240 |
146 |
1500 |
| 029131 |
4 |
1 |
20 |
200 |
82.5 |
800 |
| 029132 |
4 |
2 |
30 |
215 |
97.5 |
850 |
| 029133 |
4 |
3 |
36 |
240 |
122.5 |
1300 |
| 029134 |
4 |
4 |
48 |
265 |
147.5 |
1900 |
| 029135 |
4 |
5 |
63 |
300 |
182.5 |
3310 |
| 029136 |
5 |
1 |
20 |
232 |
82.5 |
1800 |
| 029137 |
5 |
2 |
30 |
247 |
97.5 |
1900 |
| 029138 |
5 |
3 |
36 |
268 |
118.5 |
2150 |
| 029139 |
5 |
4 |
48 |
300 |
150.5 |
2750 |
| 029140 |
5 |
5 |
63 |
335 |
185.5 |
4200 |
| 029141 |
6 |
4 |
48 |
355 |
145 |
5420 |
| 029142 |
6 |
5 |
63 |
390 |
180 |
6750 |
|
