A05

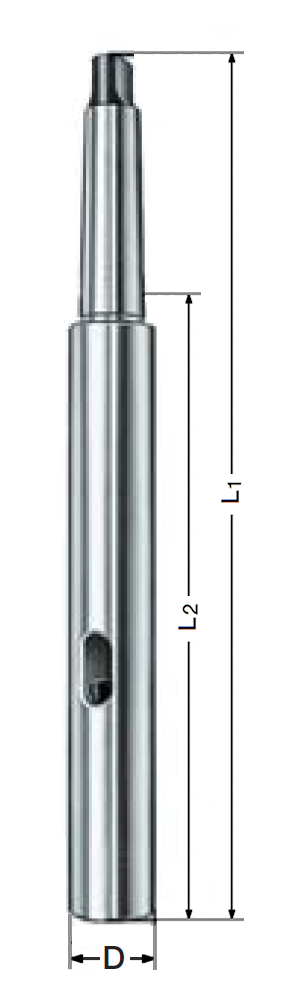

Precision version completely hardened, ground internal and external
| Item No. |
External
taper MT |
Internal
taper MT |
D
mm |
L1
mm |
L2
mm |
Weight
approx. g |
| 029143 |
1 |
1 |
20 |
200 |
138 |
250 |
| 029144 |
1 |
1 |
20 |
250 |
188 |
375 |
| 029145 |
1 |
1 |
20 |
300 |
238 |
500 |
| 029146 |
1 |
1 |
20 |
350 |
288 |
625 |
| 029147 |
1 |
1 |
20 |
400 |
338 |
750 |
| 029148 |
1 |
1 |
20 |
450 |
388 |
875 |
| 029149 |
1 |
1 |
20 |
500 |
438 |
1000 |
| 029150 |
2 |
2 |
25 |
200 |
125 |
430 |
| 029151 |
2 |
2 |
25 |
250 |
175 |
625 |
| 029152 |
2 |
2 |
25 |
300 |
225 |
820 |
| 029153 |
2 |
2 |
25 |
350 |
275 |
1015 |
| 029154 |
2 |
2 |
25 |
400 |
325 |
1200 |
| 029155 |
2 |
2 |
25 |
450 |
375 |
1400 |
| 029156 |
2 |
2 |
25 |
500 |
425 |
1600 |
| 029157 |
2 |
2 |
25 |
600 |
525 |
1800 |
| 029158 |
3 |
3 |
32 |
250 |
156 |
1000 |
| 029159 |
3 |
3 |
32 |
300 |
206 |
1300 |
| 029160 |
3 |
3 |
32 |
350 |
256 |
1550 |
| 029161 |
3 |
3 |
32 |
400 |
306 |
1850 |
| 029162 |
3 |
3 |
32 |
450 |
356 |
2100 |
| 029163 |
3 |
3 |
32 |
500 |
406 |
2400 |
| 029164 |
3 |
3 |
32 |
600 |
506 |
2700 |
| 029165 |
4 |
4 |
40 |
300 |
182.5 |
1650 |
| 029166 |
4 |
4 |
40 |
350 |
232.5 |
2150 |
| 029167 |
4 |
4 |
40 |
400 |
282.5 |
2650 |
| 029168 |
4 |
4 |
40 |
450 |
332.5 |
3100 |
| 029169 |
4 |
4 |
40 |
500 |
382.5 |
3600 |
| 029170 |
4 |
4 |
40 |
600 |
482.5 |
4200 |
|
