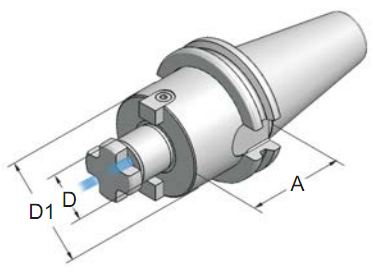

Shell mill adaptors for facing cutters DIN 6357
Taper angle AT3, Concentricity from the taper to the holding part < 0.005
Base-body balanced, SK30/BT30 G 2.5 - 25,000 r.p.m.
SK40/BT40 G 2.5 - 20,000 r.p.m.
SK50/BT50 G 2.5 - 15,000 r.p.m.
   |
| DIN 69871 |
| Art.-Nr. |
Type |
A |
D |
D1 |
| |
| |
| |
| |
| 40.01.16.9 |
SK40x16x50-AD+B+C |
50 |
16 |
39 |
| 40.01.22.9 |
SK40x22x50-AD+B+C |
50 |
22 |
49 |
| 40.01.27.9 |
SK40x27x50-AD+B+C |
50 |
27 |
60 |
| 40.01.32.9 |
SK40x32x60-AD+B+C |
60 |
32 |
68 |
| 40.01.40.9 |
SK40x40x60-AD+B+C |
60 |
40 |
88 |
| |
| 50.01.22.9 |
SK50x22x60-AD+B+C |
60 |
22 |
49 |
| 50.01.27.9 |
SK50x27x60-AD+B+C |
60 |
27 |
60 |
| 50.01.32.9 |
SK50x32x60-AD+B+C |
60 |
32 |
68 |
| 50.01.40.9 |
SK50x40x70-AD+B+C |
70 |
40 |
88 |
| 50.01.60.9 |
SK50x60x70-AD+B+C |
70 |
60 |
128 |
|
| MAS BT |
| Art.-Nr. |
Type |
A |
D |
D1 |
| 30.05.16.9 |
BT30x16x40-AD+C |
40 |
16 |
39 |
| 30.05.22.9 |
BT30x22x40-AD+C |
40 |
22 |
48 |
| 30.05.27.9 |
BT30x27x40-AD+C |
40 |
27 |
48 |
| |
| 40.05.16.9 |
BT40x16x50-AD+B+C |
50 |
16 |
39 |
| 40.05.22.9 |
BT40x22x50-AD+B+C |
50 |
22 |
49 |
| 40.05.27.9 |
BT40x27x50-AD+B+C |
50 |
27 |
60 |
| 40.05.32.9 |
BT40x32x60-AD+B+C |
60 |
32 |
68 |
| 40.05.40.9 |
BT40x40x60-AD+B+C |
60 |
40 |
88 |
| |
| 50.05.22.9 |
BT50x22x60-AD+B+C |
60 |
22 |
49 |
| 50.05.27.9 |
BT50x27x60-AD+B+C |
60 |
27 |
60 |
| 50.05.32.9 |
BT50x32x60-AD+B+C |
60 |
32 |
68 |
| 50.05.40.9 |
BT50x40x60-AD+B+C |
60 |
40 |
88 |
| 50.05.60.9 |
BT50x60x80-AD+B+C |
80 |
60 |
128 |
|
