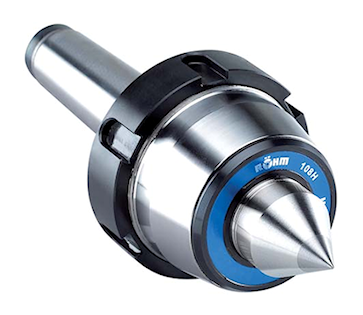

Live Centre
 Pro - carbide insert


APPLICATION
For counter-clamping workpieces on turning and
grinding machines.

TYPE
Centre point with wear-proof carbide insert.
With draw-off nut.

CUSTOMER BENEFITS
• Maximum service life and wear resistance thanks to
  carbide insert
• High concentricity and stability thanks to 3-fold bearing
• Maximum concentricity deviation of 0.005 mm for
  maximum precision

TECHNICAL FEATURES
- Body hardened and ground
- Tip angle 60°

A06

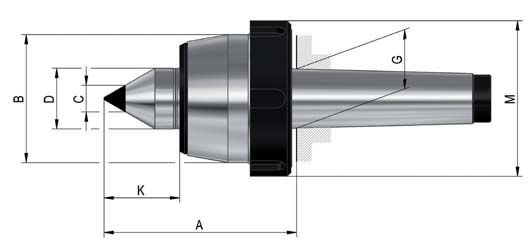

HMG Pro with draw-off nut and carbide insert, body hardened and ground - tip angle 60°

 Item No.

  221021  221022  221023  221024  221025  221026
 Mount MT  2  3  3  4  5  6
 Size  102  104  106  108  110  114
 A mm  65  70.5  79.5  102.5  129  152
 B mm  45  50  60  70  90  105
 C mm  11  11  14  14  18  18
 D mm  20  22  25  32  40  50
 G mm  17.78  23.825  23.825  31.265  44.399  63.348
 K mm  24  27  30.5  40  49.5  57
 M mm  56  62  74  82  105  120
 Weight approx. g  600  1000  1400  2400  5200  10500
 Workpiece weight max. kg  120  240  360  500  1000  1800
 Concentricity deviation max. mm  0.005  0.005  0.005  0.005  0.005  0.01
 Speed max. min-1  7000  6300  5000  3800  3000  2600
 Spare live centres  1241742  1241743  1241744  1241745  1241746  1241747
