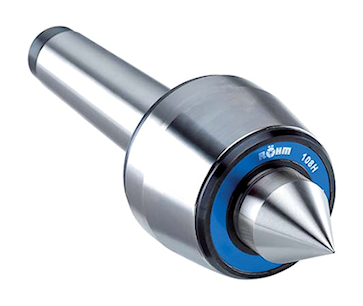

Live Centre
 Pro - standard design


APPLICATION
For counter-clamping workpieces on turning and
grinding machines.

TYPE
All-round live centre in classical design for nearly any
standard clamping situation.

CUSTOMER BENEFITS
• Proven 3-fold bearing for high axial and radial load
• Lifetime lubrication for minimum required maintenance
• Maximum concentricity deviation of 0.005 mm for
  maximum precision

TECHNICAL FEATURES
- Body hardened and ground
   (MT 1 - Metr. 80)
- Tip angle 60°

A06

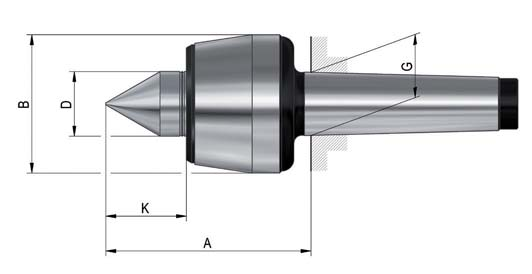

H Pro, body hardened and ground - tip angle 60°

 Item No.

  0617401)  043400  043115  042315  042776  042175  042843  043532  093439  093440
 Mount MT  0  1  2  3  3  4  5  6  6  Metr.80
 Size  100  101  102  104  106  108  110  114  116  116
 A mm  44  60.5  65  70.5  79.5  102.5  129  152  196  196
 B mm  25  34.5  43  48.5  58.5  68.5  88.5  102.5  138.5  138.5
 D mm  10  15  20  22  25  32  40  50  60  60
 G mm  9.045  12.065  17.78  23.825  23.825  31.267  44.399  63.348  63.348  80
 K mm  11  17  24  27  30.5  40  49.5  57  66  66
 Weight approx. g  200  400  500  800  1300  2300  4700  10200  17800  23000
 Workpiece weight
 max. kg		  10  100  200  400  500  800  2000  3500  5000  7500
 Concentricity
 deviation max.mm		  0.01  0.005  0.005  0.005  0.005  0.005  0.005  0.008  0.01  0.015
 Speed max. min-1  15000  7000  7000  6300  5000  3800  3000  2600  1500  1500
 Spare live centres  1241727  1241726  1241725  1241724  1241723  1241722  1241721  1241728  1241729  1241730
1) Body only ground not hardened





We reserve the right to make technical changes.
