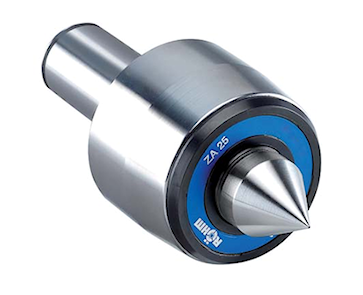

Live Centre
 Pro - cylindrical shank


APPLICATION
For the counter-clamping of workpieces on turning and
grinding machines using lathe chucks, collet chucks and
tool take-ups.
Take-up for tool magazine / turret.

TYPE
All-round live centre with cylinder shaft.

CUSTOMER BENEFITS
• Proven 3-fold bearing for high axial and radial load
• Lifetime lubrication for minimum required maintenance
• Maximum concentricity deviation of 0.005 mm for
  maximum precision

TECHNICAL FEATURES
- Body hardened and ground
- Tip angle 60°

A06

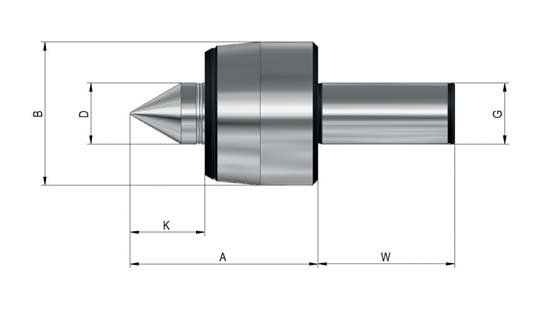

HZA Pro with cylindrical shank, body hardened and ground - tip angle 60°

 Item No.

  1316054  1316055  1316056
 Mount MT  ZA20  ZA25  ZA32
 Size  102  106  108
 A mm  58  76.8  93.1
 B mm  43  48.5  68.5
 D mm  20  25  32
 G mm  20  25  32
 K mm  24  30.5  40
 W mm  50  56  60
 Weight approx. g  414  891  1474
 Workpiece weight max. kg  130  200  400
 Concentricity deviation max. mm  0.005  0.005  0.005
 Speed max. min-1  7000  5000  3800
 Spare live centres  1241725  1241723  1241722

NOTE: Live centres with cylindrical shank and with clamping surface on request





We reserve the right to make technical changes.
