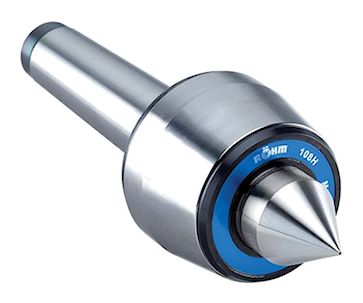

Live Centre
 Pro - high precision design


APPLICATION
For counter-clamping workpieces on turning and
grinding machines for highest demands.

TYPE
High precision design.

CUSTOMER BENEFITS
• Maximum concentricity deviation of 0.003 mm for
  maximum precision
• Lifetime lubrication for minimum required maintenance
• Proven 3-fold bearing for high axial and radial load

TECHNICAL FEATURES
- Body hardened and ground
- Tip angle 60°

A06
HP Pro precision version, body hardened and ground - tip angle 60°

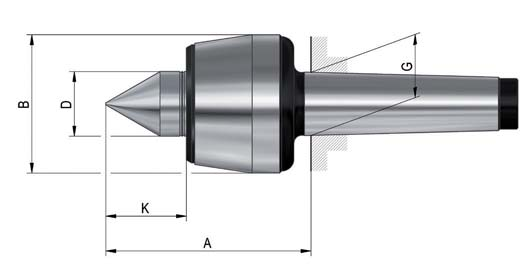

 Item No.

  082392  318227  082394  082395  1263871
 Mount MT  2  3  4  5  6
 Size  102  106  108  110  114
 A mm  65  82  102.5  129  151.6
 B mm  43  55  68.5  88.5  102.5
 D mm  20  25  32  40  50
 G mm  17.78  23.825  31.267  44.399  63.348
 K mm  24  30.5  40  49.5  56.9
 Weight approx. g  500  1300  2300  4700  8761
 Workpiece weight max. kg  200  500  800  2000  3500
 Concentricity deviation max. mm  0.003  0.003  0.003  0.003  0.003
 Speed max. min-1  7000  5000  3800  3000  2600
 Spare live centres  1241725  1243613  1241722  1241721  1241728





We reserve the right to make technical changes.
