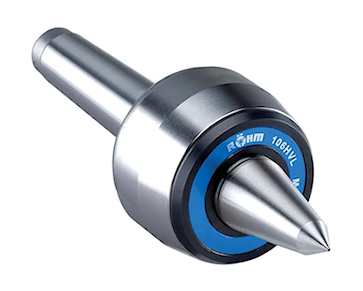

Live Centre
 Pro - extended centre point


APPLICATION
For counter-clamping workpieces on turning and
grinding machines.
Especially suited for cramped work area between
centre point and workpiece.

TYPE
All-round live centre with extended centre point.

CUSTOMER BENEFITS
• Enlarged work area and better workpiece accessibility
  thanks to extended centre point
• High concentricity and stability thanks to 3-fold bearing
• Maximum concentricity deviation of 0.005 mm for
  maximum precision

TECHNICAL FEATURES
- Body hardened and ground
- Tip angle 60°

A06

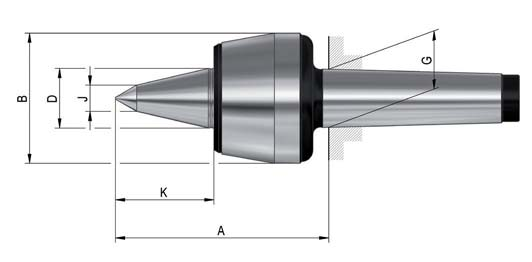

HVL Pro with extended centre point, body hardened and ground - tip angle 60°

 Item No.

  058668  058669  058670  058671  058672  058673
 Mount MT  1  2  3  4  5  6
 Size  101  102  106  108  110  114
 A mm  70.5  75  95.5  114.5  143.5  172.5
 B mm  34.5  43  58.5  68.5  88.5  102.5
 D mm  15  20  25  32  40  50
 G mm  12.065  17.78  23.825  31.267  44.399  63.348
 K mm  27  34  47  53  64  78
 J mm  9  10  12  14  16  18
 Weight approx. g  400  500  1300  2300  4800  10200
 Workpiece weight max. kg  80  140  400  500  1200  2500
 Concentricity deviation max. mm  0.01  0.005  0.005  0.005  0.005  0.01
 Speed max. min-1  7000  7000  5000  3800  3000  2600
 Spare live centres  1241731  1241732  1241733  1241734  1241735  1241736

Version with draw-off nut on request
