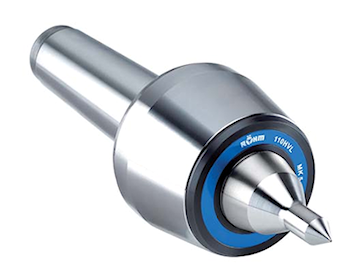

Live Centre Pro - profiled,extended centre point |
  |
APPLICATION For counter-clamping workpieces on turning and grinding machines. Especially suited for cramped work area between centre point and workpiece as well as low-lying workpiece centres. TYPE All-round live centre with profiled and extended centre point. CUSTOMER BENEFITS • Enlarged work area and better workpiece accessibility thanks to profiled and extended centre point • High concentricity and stability thanks to 3-fold bearing • Maximum concentricity deviation of 0.005 mm for maximum precision TECHNICAL FEATURES - Body hardened and ground  - Tip angle 60° |

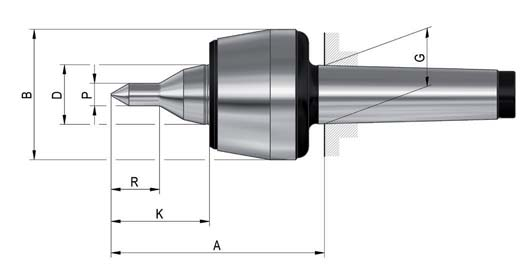

| A06 HVLN Pro with profiled, extended centre point, body hardened and ground - tip angle 60°
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|
 |
