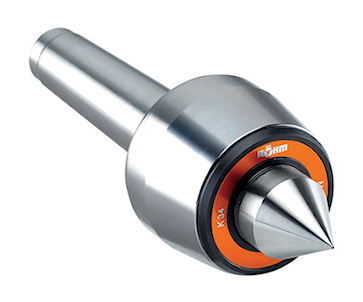

Live Centre
 Pro - Orange Line


APPLICATION
For counter-clamping workpieces on turning and
grinding machines.

TYPE
All-round live centre in classical design for all basic
requirements for turning machining.

CUSTOMER BENEFITS
• Centre point through-hardened and therefore can be
  reground as desired
• Lifetime lubrication for minimum required maintenance
• Good price/performance ratio

TECHNICAL FEATURES
- Body ground
- Tip angle 60°

A06
Orange Line, body only ground- tip angle 60°

 Item No.

  1267217  1267218  1267219
 Mount MT  3  4  5
 Size  K33  K34  K35

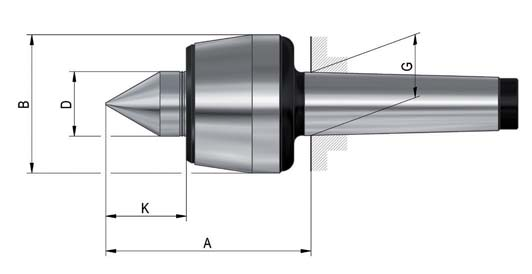

 A mm  82.5  101.5  128
 B mm  55  68.5  88.5
 D mm  25  32  40
 G mm  23.825  31.267  44.399
 K mm  30  40  49.5
 Weight approx. g  1000  1800  4300
 Workpiece weight max. kg  300  500  630
 Concentricity deviation max. mm  0.005  0.005  0.005
 Speed max. min-1  8500  6000  4500
 Spare live centres  1243613  1241722  1241721

Note: For higher rotation Speed at reduced lateral load





We reserve the right to make technical changes.
