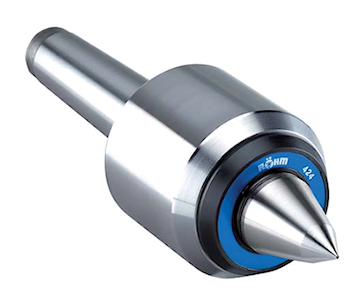

Live Centre Heavy - extended centre point |
  |
APPLICATION For counter-clamping especially heavy workpieces on turning and grinding machines. Especially suitable for use on NC-machines. TYPE Universal version with extended centre point for heavy workpieces. CUSTOMER BENEFITS • Robust 4-fold precision bearing for high speeds as well as high axial and radial loads • Reliable and safe clamping of heavy workpieces • Maximum concentricity deviation of 0.005 mm for maximum precision TECHNICAL FEATURES - Body hardened and ground  - Tip angle 60° |
| A06 Heavy especially for high load at high speeds, body hardened and ground - tip angle 60°
|
 |
|
 |
