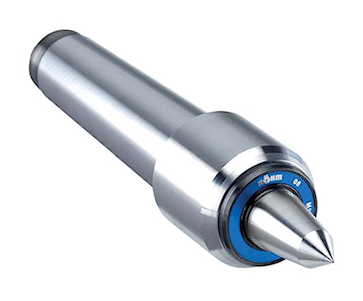

Live Centre
 Slim - extended centre point


APPLICATION
For counter-clamping workpieces on turning and
grinding machines.
Especially suited for cramped work area between
centre point and workpiece as well as low-lying
workpiece centres.

TYPE
Compact design with minimum casing diameter.
With extended centre point.

CUSTOMER BENEFITS
• Enlarged work area and better workpiece accessibility
  thanks to narrow casing diameter and extended
  centre point
• Maximum rigidity at high speeds thanks to compact
  design
• Maximum concentricity deviation of 0.008 mm for
  maximum precision

TECHNICAL FEATURES
- Body hardened and ground
- Tip angle 60°

A06

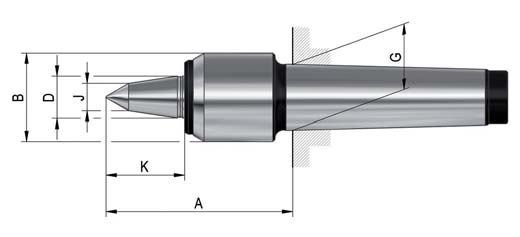

Slim with small casing diameter and extended centre point,
body hardened and ground - tip angle 60°

 Item No.

  362080  362081  362082  362083  362084
 Mount MT  2  3  4  5  6
 Size  02  04  08  10  14
 A mm  73  74  88.5  119  164
 B mm  32  34  42  58  80
 D mm  15  15  20  30  42
 G mm  17.78  23.825  31.267  44.399  63.348
 K mm  29.5  32  37.5  51.5  70.5
 J mm  10  11  13  14  18
 Weight approx. g  320  460  1000  2600  7100
 Workpiece weight max. kg  170  340  700  1400  3000
 Concentricity deviation max. mm  0.008  0.008  0.008  0.01  0.02
 Speed max. min-1  7000  7000  6300  4300  3000
 Spare live centres  1241753  1241754  1241755  1241756  1241757





We reserve the right to make technical changes.
