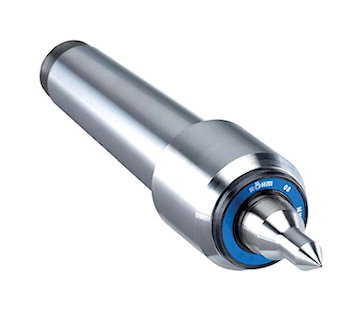

Live Centre
 Slim - profiled, extended centre point


APPLICATION
For counter-clamping workpieces on turning and
grinding machines.
Especially suited for cramped work area between
centre point and workpiece.

TYPE
Compact design with minimum casing diameter.
With extended and profiled centre point.

CUSTOMER BENEFITS
• Enlarged work area and better workpiece accessibility
  thanks to narrow casing diameter and extended
  and profiled centre point
• Maximum rigidity at high speeds thanks to compact
  design
• Maximum concentricity deviation of 0.008 mm for
  maximum precision

TECHNICAL FEATURES
- Body hardened and ground
- Tip angle 60°

A06

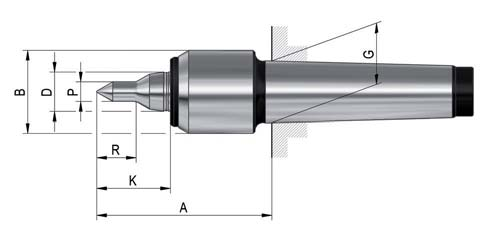

Slim with small casing diameter and profiled and extended centre point,
body hardened and ground - tip angle 60°

 Item No.

  1241695  1243505  1243507  1243509
 Mount MT  2  3  4  5
 Size  02  04  08  10
 A mm  73  74  88.5  119
 B mm  32  34  42  58
 D mm  15  15  20  30
 G mm  17.78  23.825  31.267  44.399
 K mm  29.5  32  37.5  51.5
 P mm  6  8  10  12
 R mm  12  16  20  26
 Workpiece weight max. kg  50  100  150  180
 Concentricity deviation max. mm  0.008  0.008  0.008  0.01
 Speed max. min-1  7000  7000  6300  4300
 Weight approx. g  320  460  1000  2600
 Spare live centres  1241758  1241759  1241760  1241761
