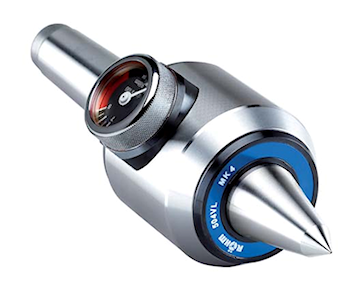

Live Centre Control - extended centre point |
APPLICATION For counter-clamping workpieces on turning and grinding machines. Optimally suited as counter-centre for face drivers as well as for cramped work area between centre point and workpiece. TYPE With pressure display, length compensation and extended centre point. CUSTOMER BENEFITS • Fast adjustment and check of axial load by means of pressure display • Enlarged work area and better workpiece accessibility thanks to extended centre point • Resilient centre point for safe, deformation-free workpiece clamping • Maximum concentricity deviation of 0.01 mm for maximum precision TECHNICAL FEATURES - Body hardened and ground - Tip angle 60° |

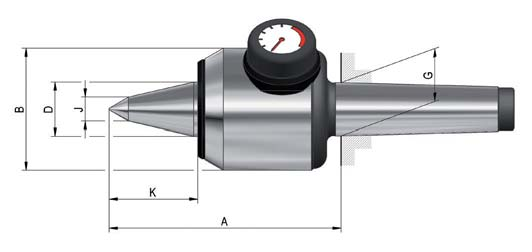

A06 AC-VL Control with pressure display, length compensation and extended centre point as counter-centre for face drivers, body hardened and ground - tip angle 60°
|
|
