Live centres - for interchangeable inserts
 Flex - interchangeable inserts


APPLICATION
For counter-clamping workpieces on turning and
grinding machines.

TYPE
With interchangeable inserts made of wear-resistant
tool steel for maximum flexibility.

CUSTOMER BENEFITS
• Wide range of applications thanks to interchangeable
  inserts
• Quick change of interchangeable inserts

TECHNICAL FEATURES
- Body hardened and ground
- Inserts through-hardened
  and ground

A06

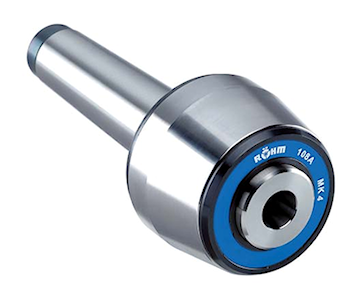

A Flex for interchangeable inserts, body hardened and ground

 Item No.

  061030  061031  061032  061038  061039  061040
 Mount MT  2  3  3  4  5  6
 Size  102  104  106  108  110  114
 A mm  45  48  55  67  85  101
 B mm  43  48.5  58.5  68.5  88.5  102.5
 D mm  20  22  25  32  40  50
 E mm  4  4  5.5  5  6  6
 G mm  17.78  23.825  23.825  31.267  44.399  63.348
 Concentricity deviation max. mm  0.01  0.01  0.01  0.01  0.01  0.015
 Speed max. min-1  7000  6300  5000  3800  3000  2600
 Workpiece weight max. kg  40  130  150  250  650  900
 Weight without inserts  440  750  1100  1900  4400  8600
 Weight g  900  1700  2200  3700  8000  -
 Spare live spindle  009836  009838  009843  009870  009872  009874

Version with draw-off nut on request





We reserve the right to make technical changes.
