ISO Taper-toolholders


Thread cutting quick-change chucks

with smooth-action length compensation for pressure and tension

The tapping collet has to be ordered separately !

       DIN 69871

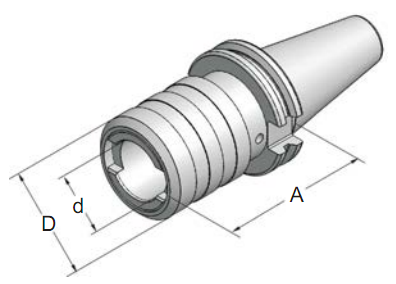

 Art.-Nr. Type Size A d D
 30.01.12.130 SK30xM3-M12 1 65 19 38
 40.01.12.130 SK40xM3-M12 1 59 19 38
 50.01.12.130 SK50xM3-M12 1 50 19 38

 30.01.20.130 SK30xM8-M20 2 103 31 54
 40.01.20.130 SK40xM8-M20 2 97 31 54
 50.01.20.130 SK50xM8-M20 2 82 31 54

 40.01.33.130 SK40xM14-M33 3 134 48 78
 50.01.33.130 SK50xM14-M33 3 134 48 78
       MAS BT
 Art.-Nr. Type Size A d D
 30.05.12.130 BT30xM3-M12 1 62 19 38
 40.05.12.130 BT40xM3-M12 1 65 19 38
 50.05.12.130 BT50xM3-M12 1 80 19 38

 30.05.20.130 BT30xM8-M20 2 95 31 54
 40.05.20.130 BT40xM8-M20 2 93 31 54
 50.05.20.130 BT50xM8-M20 2 80 31 54

 40.05.33.130 BT40xM14-M33 3 126 48 78
 50.05.33.130 BT50xM14-M33 3 142 48 78

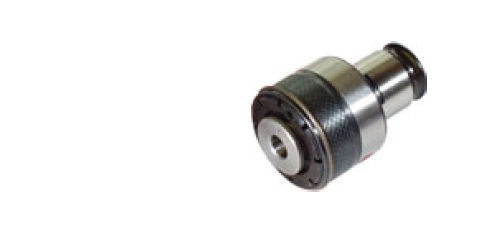

Tapping collets with cluth
     Size 1   M3-M12
 Art.-Nr.   Type
 100035  ø 3.50-M3+M4
 100045  ø 4.50-M4+M6
 100060  ø 6.00-M5+M6+M8
 100070  ø 7.00-M7+M9+M10
 100080  ø 8.00-M8+M11
 100090  ø 9.00-M9+M12
 100100  ø10.00-M10







     Size 2   M8-M20
 Art.-Nr.   Type




 200080  ø 8.00-M8+M11
 200090  ø 9.00-M9+M12
 200100  ø10.00-M10
 200110  ø11.00-M14
 200120  ø12.00-M12+M16
 200140  ø14.00-M18
 200160  ø16.00-M20



    Size 3   M14-M33
 Art.-Nr.   Type







 300110  ø11.00-M14
 300120  ø12.00-M12+M16
 300140  ø14.00-M18
 300160  ø16.00-M20
 300180  ø18.00-M22+M24
 300200  ø20.00-M27+M30
 300220  ø22.00-M33
