Revolving centering taper
 MZK

APPLICATION
For counter-clamping workpieces with large boreholes,
such as pipes on lathes and grinding machines.

TYPE
Revolving centering taper in pointed version or cone
truncated version.

CUSTOMER BENEFITS
• Large clamping range for a wide range of boreholes
  and centres
• Proven 3-fold bearing for high axial and radial load

TECHNICAL FEATURES
- Body hardened and ground




A06

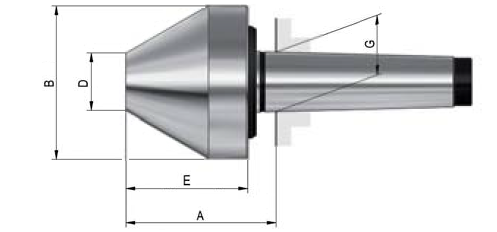

Revolving centering taper, cone truncated, 60°

 Item No.

  Size  Mount
 MT		  A
 mm		  B
 mm		  D
 mm		  E
 mm		  G
 mm		  Workpiece
 weight
 max. kg		  Concentricity
 deviation
 max. mm		  Speed
 max.
 min-1		  Weight
 g
 301616  171a  2  65  50  20  52  17.78  200  0.008  6000  1200
 301556  172  2  77  80  30  64  17.78  300  0.008  5000  2000
 301557  172a  3  77  80  30  64  23.825  400  0.008  5000  2200
 221605  173  3  96.5  120  30  83  23.825  600  0.008  4000  4200
 301558  172b  4  78.5  80  30  64  31.267  400  0.008  5000  2300
 044023  173a  4  98  120  30  83  31.267  800  0.008  4000  4500
 090483  173b  5  99  120  30  83  44.399  800  0.008  4000  5300





We reserve the right to make technical changes.
