Revolving centering taper
 MZK

APPLICATION
For counter-clamping workpieces with large boreholes,
such as pipes on lathes and grinding machines.

TYPE
With interchangeable centering taper attachments.
Optionally with draw-off nut or fixed shaft.

CUSTOMER BENEFITS
• High flexibility thanks to interchangeable centering
  taper attachments
• Quick change of interchangeable centering taper
  attachments

TECHNICAL FEATURES
- Body hardened and ground
- Centering taper insert hardened and ground


A06

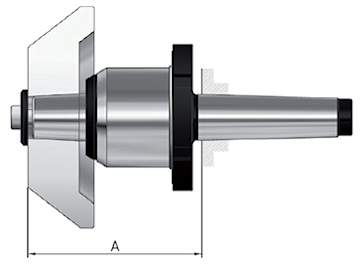

Revolving centering taper, with draw-off nut, for high load

 Item No.

  Size  Mount MT  A mm  Workpiece
 weight
 max. kg		  Concentricity
 deviation
 max. mm		  Speed
 max.
 min-1		  Weight g
 304583  494  4  118  1000  0.005  7000  3200
 304584  495  5  140  2000  0.005  6000  6500
 304585  496  6  168  3500  0.005  4800  13500

With fastening screw and disc, without centering taper attachment





We reserve the right to make technical changes.
