Revolving centering taper
 MZK

APPLICATION
For counter-clamping workpieces with large boreholes,
such as pipes on lathes and grinding machines.

TYPE
With interchangeable centering taper attachments.
Optionally with draw-off nut or fixed shaft.

CUSTOMER BENEFITS
• High flexibility thanks to interchangeable centering
  taper attachments
• Quick change of interchangeable centering taper
  attachments

TECHNICAL FEATURES
- Body hardened and ground
- Centering taper insert hardened and ground


A07

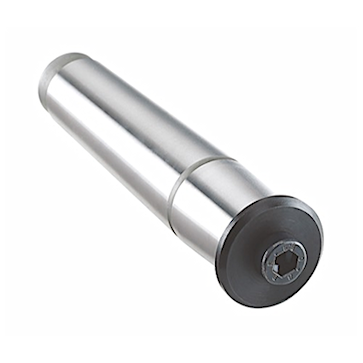

Fixed shafts

 Item No.

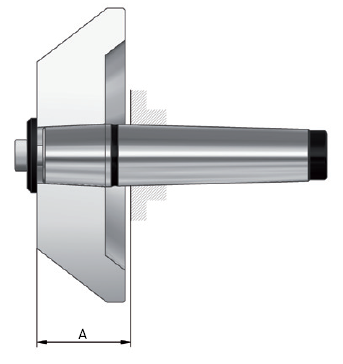

  Mount MT  A mm  Workpiece
 weight
 max. kg		  Concentricity
 deviation
 max. mm		  Weight g
 304580  4  45  2000  0.003  800
 304581  5  60  4800  0.003  2000
 304582  6  70  12000  0.003  5500

With fastening screw and disc, without centering taper attachment
Version with draw-off nut on request





We reserve the right to make technical changes.
