Solid centres
 FZS

APPLICATION
For counter-clamping workpieces on lathes with tailstock
bearing and grinding machines.

TYPE
Designs with concentricity of 0.003 mm or higher are
available on request.

CUSTOMER BENEFITS
• High wear resistance thanks to tool steel /
  carbide insert
• High load capacity and rigidity since tips are one piece

TECHNICAL FEATURES
- Solid centres are hardened and ground



A07

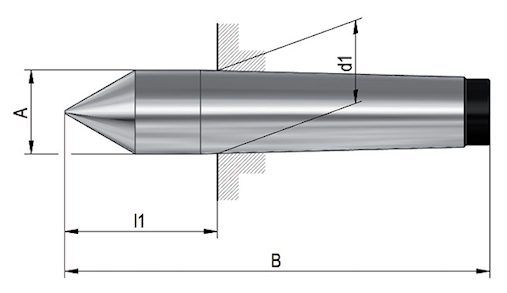

DIN 806, full point, material: tool steel

 Item No.

  Mount MT  A mm  B mm  d1 mm  l1 mm  Weight g
 013706  0  9.2  70  9.045  20  30
 013707  1  12.2  80  12.065  26.5  60
 013709  2  18  100  17.78  36  150
 013711  3  24.1  125  23.825  44  340
 013712  4  31.6  160  31.267  57.5  760
 013715  5  44.7  200  44.399  70.5  1920
 013718  6  63.8  270  63.348  88  5200





We reserve the right to make technical changes.
