Constant face drivers CoE - turning and milling |
APPLICATION For the rational turning and milling of workpieces on its entire length without reclamping with maximum precision. TYPE Basic body with morse taper / cylindrical shank and mechanical pressure compensation. Clamping circuit Ø 8-80 mm. Workpiece weight max. 100 kg. CUSTOMER BENEFITS • For turning and milling in one set-up • Compensating driving disc, radially backlash-free • Maximum concentricity of up to 0.01 mm • Stable and constant workpiece length stop on the front side thanks to resilient centre point • Maximum flexibility thanks to universal exchange of driving disc and centre point TECHNICAL FEATURES - Guide value for axially permissible total load on 3 support pistons: 9000 N |

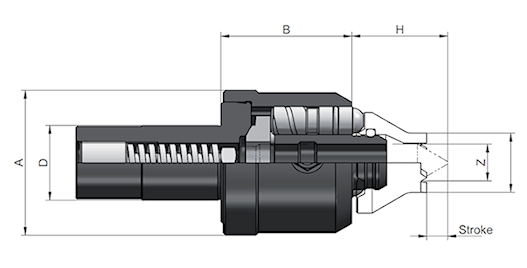

A14 Basic body with morse taper (all basic bodies without driving disc and centre), mechanical
|
A14 Basic body with cylindrical shank (all basic bodies without driving disc and centre), mechanical
|
|
