Constant face drivers
 Accessories CoE

A14

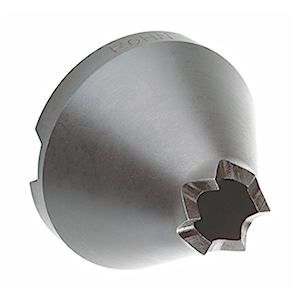

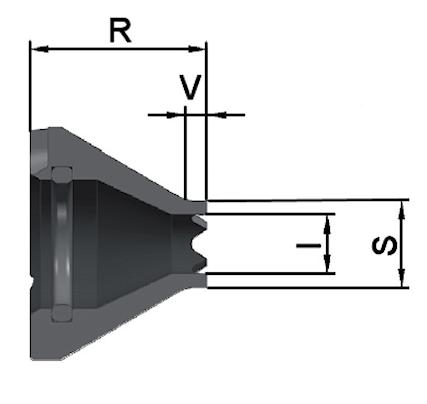

Driving discs, toothed, right- and left-hand rotation, free from play

   Item No.

  Clamping
 circuit Ø
 S mm		  Approx.
 turning
 range		  I mm  R mm  V mm  Assoc. centre
 point Ø Y mm		  Axial load
 max. N
   1209000  8  9-16  4.5  38  4  4  4000
   1209001  10  11-20  4.5  38  4  4  6000
   1209002  12  13-24  7  36  4  6  6000
   1209003  16  17-32  11  33  4  10  6000
   1209004  20  21-40  13  30  4  12  8000
   1209005  25  26-50  17  30  8  16  9000
   1209006  32  33-64  22  30  10  16  9000

  Driving discs with carbide toothing on request

A14

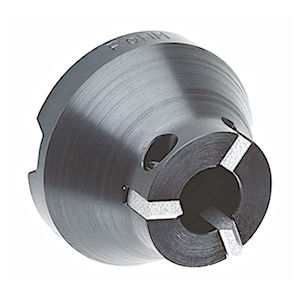

Driving discs, with interchangeable carbide driving plates 6 x 3.2, right- and left-hand
rotation, free from play

   Item No.

  Clamping
 circuit Ø
 S mm		  Approx.
 turning
 range		  I mm  R mm  V mm  Assoc. centre
 point Ø Y mm		  Axial load
 max. N
   1209008  25  26-50  11  30  8  10  9000
   1209009  32  33-64  17.5  30  10  16  9000
   1209010  40  41-80  27  30  16  16  9000




 

A14

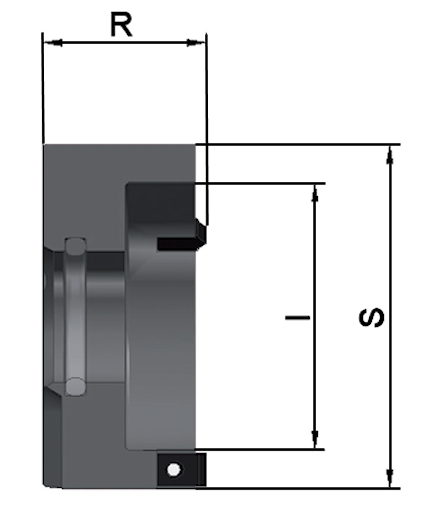

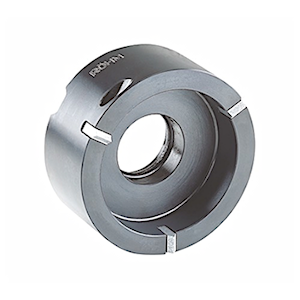

Driving discs, with interchangeable carbide driving plates 6 x 3.2, right- and left-hand
rotation, free from play

   Item No.

  Clamping
 circuit Ø
 S mm		  Approx.
 turning
 range		  I mm  R mm  Assoc. centre
 point Ø Y mm		  Axial load
 max. N
   1209011  50  51-100  36  30  16  9000
   1209012  63  64-126  49  30  16  9000
   1209013  80  81-160  66  30  16  9000




 

A14

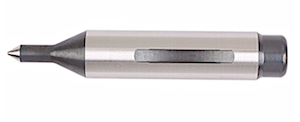

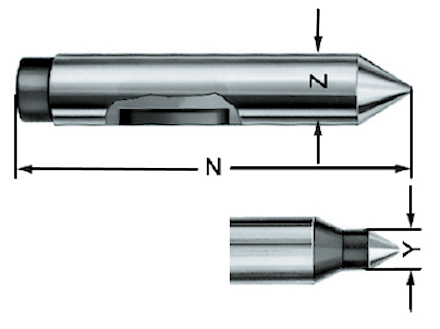

Centres

   Item No.

  Clamping circuit Ø S mm  N mm  Y mm  Z mm
   1209016  8-10  90  4  16
   1209017  12  90  6  16
   1209018  16  90  10  16
   1209019  20  90  12  16
   1209020  25-80  90  16  16

  Centering taper on request


A14
Carbide driving plates, right- and left-hand rotation

   Item No.

  Size  Clamping circuit Ø mm
   088970  6x3.2  20-32




A14
Mounting sleeve, for clamping the face driver in the lathe chuck

   Item No.

  MT inside  A mm  B mm  C mm  D mm  G mm
   085033  3  32  39  32  40  23.825
   085034  4  40  47  42  50  31.267
   085035  5  55  62  52  60  44.399

 

 

 

A14

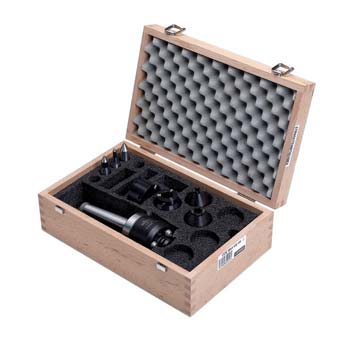

CoE-small assortment in wooden box, mechanical pressure compensation, clamping
circuit ø 12-50, turning range 13-100 mm
Included in delivery: 1x basic body, 4x driving discs (clamping circuit Ø 12, 20, 32, 50),
3x centre points (centering Ø 6, 12, 16)

   Item No.

  MT  Weight approx. g
   1209048  3  3600
   1209049  4  3870
   1209050  5  4550

 

 

 





We reserve the right to make technical changes.
