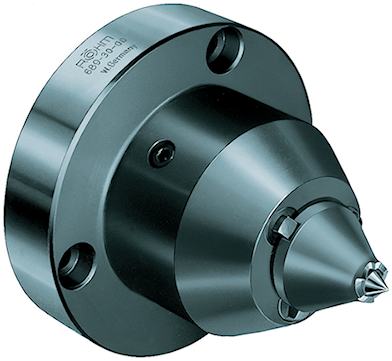

Power-operated face drivers
 CoK 8-80 mm


APPLICATION
For machining workpieces with high unbalance, heavy
weight, high chip removal or irregular cutting.

TYPE
Force-actuated face driver with mechanical pressure
compensation.
Clamping circuit Ø 8-80 mm.
Workpiece weight max. 350 kg.

CUSTOMER BENEFITS
• Maximum concentricity of up to 0.01 mm
• Workpiece longitudinal stop realized in centering
• Low centering force, even at max. cutting load
• Maximum flexibility thanks to universal exchange
  of driving disc and centre point

TECHNICAL FEATURES
- The drivers are pressed against the workpiece
   with force-actuation


A14

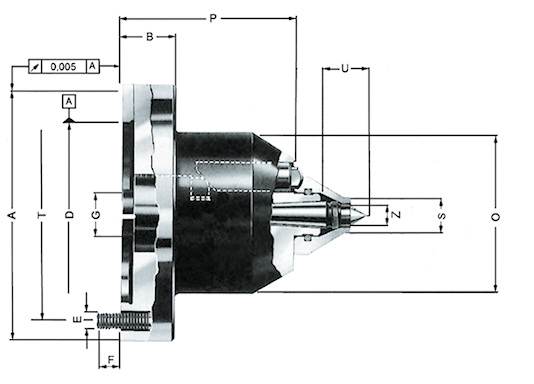

Basic body (without centre, without draw-off nut) mechanical

 Item_No.

  A
 mm		  B
 mm		  D
 mm		  E  F
 mm		  G
 mm		  O
 mm		  P
 mm		  T
 mm		  Z
 mm		  Driving disc
 stroke mm		  Weight
 approx. g
 313900  142  30  100  M10  15  25  90  93  120  15  5  6500

Draw-off nut M 14x1.5 Id.No. 089229

A14

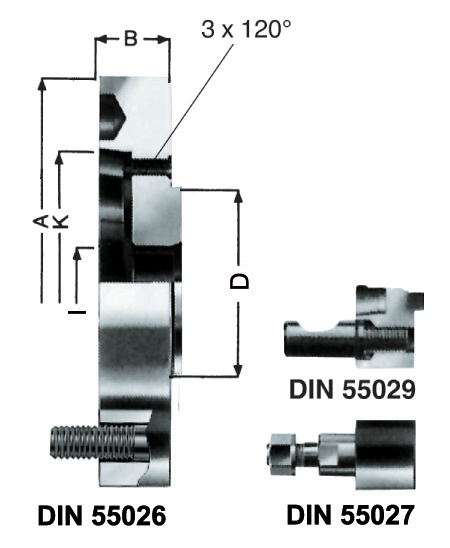

Adapter plate short taper

 Item No.

  Design  Taper  A mm  B mm  D mm  l mm  K mm  Weight approx. g
 088485  ISO 702-1  5  140  30  100  38  82.563  3100
 088486  ISO 702-1  6  167  35  100  38  106.39  4800
 088487  ISO 702-1  8  216  40  100  38  139.735  8700
 088488  ISO 702-1  11  280  45  100  38  196.885  17000
 088480  ISO 702-3  5  140  30  100  38  82.563  3100
 088481  ISO 702-3  6  167  35  100  38  106.39  4800
 088482  ISO 702-3  8  216  40  100  38  139.735  8700
 088483  ISO 702-3  11  280  45  100  38  196.885  17000
 088495  ISO 702-2  5  140  30  100  38  82.563  3100
 088496  ISO 702-2  6  167  35  100  38  106.39  4800
 088497  ISO 702-2  8  216  40  100  38  139.735  8700
 088498  ISO 702-2  11  280  45  100  38  196.885  17000
