  Solid carbide thread milling cutters for internal threads - GSF |

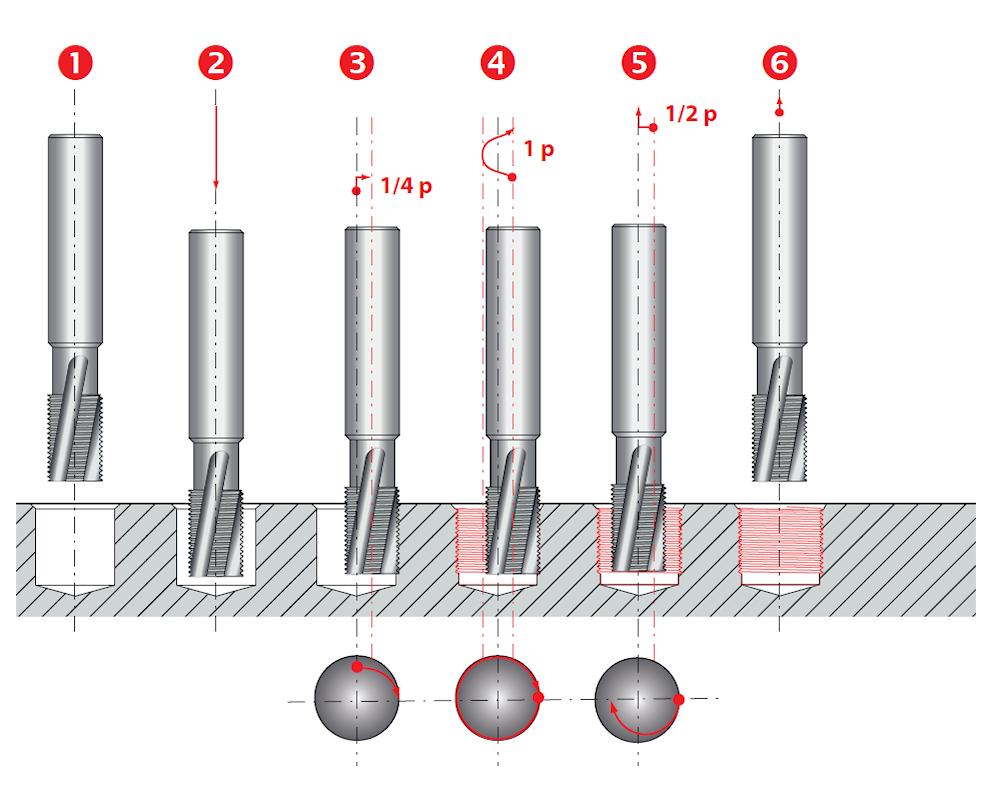

| 1.- Positioning GSF mill. 2.- Feed GSF mill and adjust to full thread depth. 3.- Run-in loop 90º for the depth adjustment of the thread profile. 4.- Turn 360º for thread milling, interpolation with the thread pitch, around the mill axis. 5.- Run-out loop 180º to return the mill to the hole axis. 6.- Retracting the GSF mill to the start position. Usable in the majority of materials: Grey cast iron, Alloyed grey cast iron, Brass and short chipping Bronze, Aluminium and Aluminium alloys, Low alloyed steels, Alloyed steels up to 1.400 N/mm², Stainless steels, Titanium alloys. |
 |
|
 |
