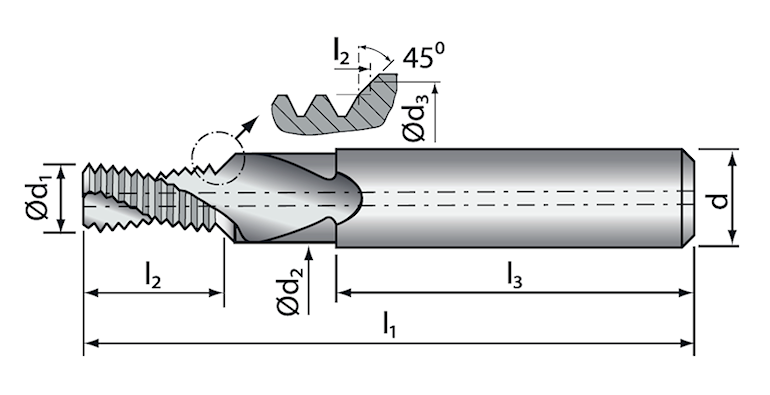

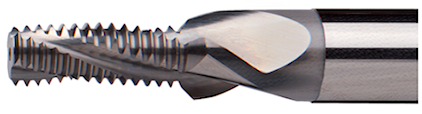

Solid carbide thread milling cutters with counterbore for internal threads - GSFM
ISO Metric coarse thread DIN 13

 Shank = DIN 6535 HA
1.5 x D GSFM1-A-
RA-HA		 GSFM1-A-
RR-HA
l1
mm		 l2
mm		 l3
mm		 l4
mm		 d1
mm		 d
mm		 d2
mm		 d3
mm		 Z D x P
mm		 ★ EDP = Nr. + ★
6021102000* 6022102000*
70 12.5 40   6.7 10     3  M 8 x 1 084 ■ ▼
75 15.5 45   8.7 12     3  M 10 x 1 104 ■ ▼
75 15.7 45   8.4 12     3  M 10 x 1.25 105 ■ ▼
84 18.5 45   10.6 14     4  M 12 x 1 124 ■ ▼
84 18.2 45   10.4 14     4  M 12 x 1.25 125 ■ ▼
84 18.8 45   10.1 14     4  M 12 x 1.5 126 ■ ▼
94 21.8 48   12.1 16     4  M 14 x 1.5 146 ■ ▼
94 24.8 48   14 18     4  M 16 x 1.5 166 ■ ▼

2 x D GSFM2-A-
RA-HA		 GSFM2-A-
RR-HA
l1
mm		 l2
mm		 l3
mm		 l4
mm		 d1
mm		 d
mm		 d2
mm		 d3
mm		 Z D x P
mm		 ★ EDP = Nr. + ★
6021202000* 6022202000*
70 12.5 40   6.7 10     3  M 8 x 1 084 ■ ▼
75 15.5 45   8.7 12     3  M 10 x 1 104 ■ ▼
75 15.7 45   8.4 12     3  M 10 x 1.25 105 ■ ▼
84 18.5 45   10.6 14     4  M 12 x 1 124 ■ ▼
84 18.2 45   10.4 14     4  M 12 x 1.25 125 ■ ▼
84 18.8 45   10.1 14     4  M 12 x 1.5 126 ■ ▼
94 21.8 48   12.1 16     4  M 14 x 1.5 146 ■ ▼
94 24.8 48   14 18     4  M 16 x 1.5 166 ■ ▼
   ■ = Stock       ▼ = On request       EDP: GSFM1-A-RA-HA M 8x1 = 6021100012084

Note:  If the thread milling cutter is needed with shank DIN 6535 type HB

or

HE


           the letters HA in reference must be changed by HB or HE.





We reserve the right to make technical changes.
