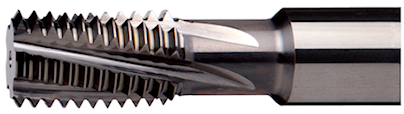

Solid carbide thread milling cutters for internal threads - GSF

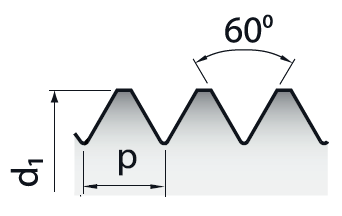

ISO Metric coarse thread DIN 13

 Shank = DIN 6535 HA

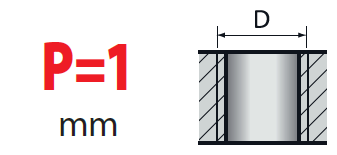

GSF10-A-RA-HA GSF10-A-RR-HA

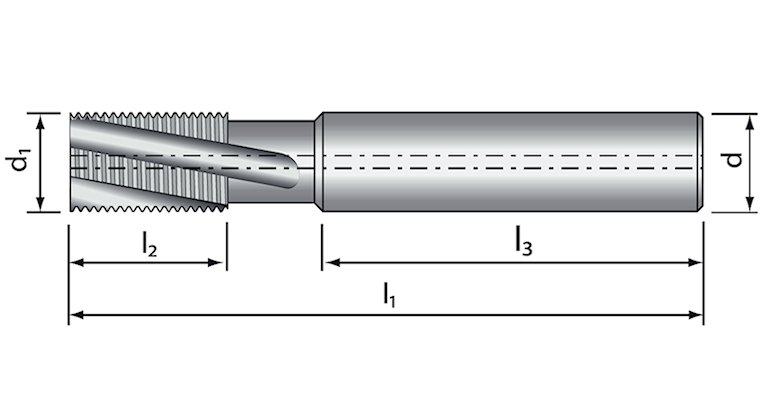

d1 x l2 x P
mm		 Ø D min.
mm		 d
mm		 l1
mm		 l3
mm		 z ★ EDP = Nr. + ★
6010310012* 6010320012*
10 x 10 x 1 14 10 63 40 4 100 ■ ▼
10 x 16 x 1 14 10 70 40 4 103 ■ ▼
12 x 12 x 1 16 12 70 45 4 121 ■ ▼
12 x 20 x 1 16 12 80 45 4 125 ■ ▼
16 x 16 x 1 22 16 80 48 5 163 ■ ▼
16 x 25 x 1 22 16 90 48 5 167 ■ ▼
20 x 20 x 1 27 20 92 50 5 205 ■ ▼
20 x 32 x 1 27 20 105 50 5 208 ■ ▼

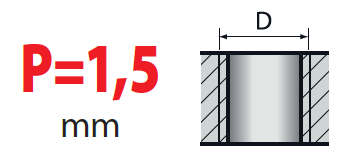

GSF15-A-RA-HA GSF15-A-RR-HA
d1 x l2 x P
mm		 Ø D min.
mm		 d
mm		 l1
mm		 l3
mm		 z ★ EDP = Nr. + ★
6015310012* 6015320012*
10 x 10 x 1.5 14 10 63 40 4 100 ■ ▼
10 x 16 x 1.5 14 10 70 40 4 103 ■ ▼
12 x 12 x 1.5 16 12 70 45 4 121 ■ ▼
12 x 20 x 1.5 16 12 80 45 4 125 ■ ▼
16 x 16 x 1.5 22 16 80 48 5 163 ■ ▼
16 x 25 x 1.5 22 16 90 48 5 167 ■ ▼
20 x 20 x 1.5 27 20 92 50 5 205 ■ ▼
20 x 32 x 1.5 27 20 105 50 5 208 ■ ▼

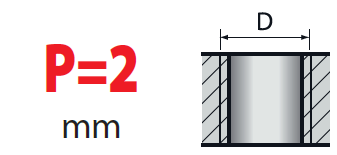

GSF20-A-RA-HA GSF20-A-RR-HA
d1 x l2 x P
mm		 Ø D min.
mm		 d
mm		 l1
mm		 l3
mm		 z ★ EDP = Nr. + ★
6020310012* 6020320012*
16 x 16 x 2 22 16 80 48 5 163 ■ ▼
16 x 25 x 2 22 16 90 48 5 167 ■ ▼
20 x 20 x 2 27 20 92 50 5 205 ■ ▼
20 x 32 x 2 27 20 105 50 5 208 ■ ▼

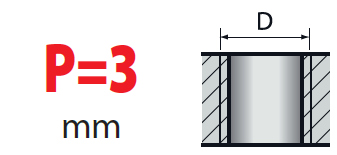

GSF30-A-RA-HA GSF30-A-RR-HA
d1 x l2 x P
mm		 Ø D min.
mm		 d
mm		 l1
mm		 l3
mm		 z ★ EDP = Nr. + ★
6030310012* 6030320012*
20 x 20 x 3 27 20 92 50 5 205 ■ ▼
20 x 32 x 3 27 20 105 50 5 208 ■ ▼
   ■ = Stock       ▼ = On request       EDP: GSF15-A-RR-HA 10x16x1.5 = 6032015012103

Note:  If the thread milling cutter is needed with shank DIN 6535 type HB

or

HE


           the letters HA in reference must be changed by HB or HE.





We reserve the right to make technical changes.
