 HAM 30-2080 (HAM 294 Multidrill)  solid carbide spiral drill 12 x D

   Engineering data
   • 4-facet ground
   • straight fluted
   • for machining of short
     chipping materials



 HAM Multidrill are listed as special tools in our latest product portfolio.
We are pleased to offer them on request.

 Material
 30-2080
                                                    very suitable     limited suitable

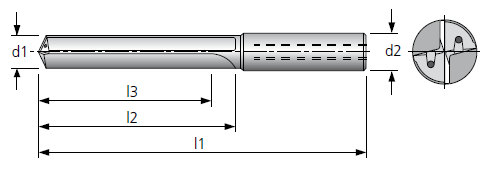

Ø d1
(m7)
mm		 l3

mm		 l2

mm		 l1

mm		 Ø d2
(h6)
mm		   Ø d1
(m7)
mm		 l3

mm		 l2

mm		 l1

mm		 Ø d2
(h6)
mm
4    58 77 121 6   10    110 130 175 10
4.2 58 77 121 6   10.2 142 159 209 12
4.5 58 77 121 6   10.5 142 159 209 12
5    70 82 121 6   11    142 159 209 12
5.5 70 82 121 6   11.5 142 159 209 12

6    70 82 121 6   12    142 159 209 12
6.5 94 106 146 8   12.5 166 183 233 14
6.8 94 106 146 8   13    166 183 233 14
7    94 106 146 8   13.5 166 183 233 14
7.5 94 106 146 8   14    166 183 233 14

7.8 94 106 146 8   14.5 192 207 260 16
8    94 106 146 8   15    192 207 260 16
8.5 110 130 175 10   15.5 192 207 260 16
9    110 130 175 10   16    192 207 260 16
9.5 110 130 175 10





We reserve the right to make technical changes.
